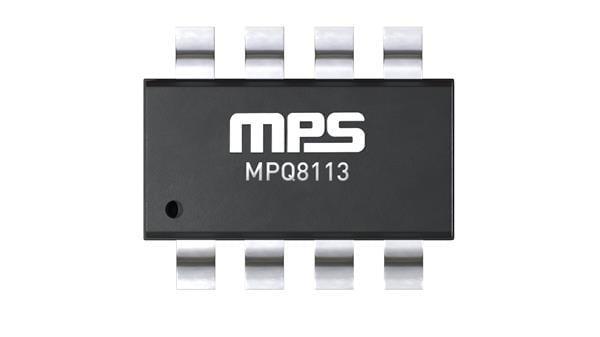

Monolithic Power Systems (MPS) MPQ8113GJ-AEC1-Z Current Sense Amplifiers 60V, High-Side Current-Sense Amplifier, AEC-Q100 Qualified
Manufacturer: Monolithic Power Systems (MPS) Model: MPQ8113GJ-AEC1-Z - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Accuracy: 1 %
Gain V/V: 50 V/V
Shutdown: Shutdown
Input Type: Common Mode
Output Type: Voltage
Qualification: AEC-Q100
Amplifier Type: High-Side Current Sense Amplifier
Mounting Style: SMD/SMT
Number of Channels: 1 Channel
Supply Voltage - Max: 60 V
Supply Voltage - Min: 2.7 V
Pd - Power Dissipation: 570 mW
Ib - Input Bias Current: 1 uA
Operating Supply Current: 300 uA
Vcm - Common Mode Voltage: 0 V to 60 V
Vos - Input Offset Voltage: 300 uV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR - Power Supply Rejection Ratio: 90 dB
