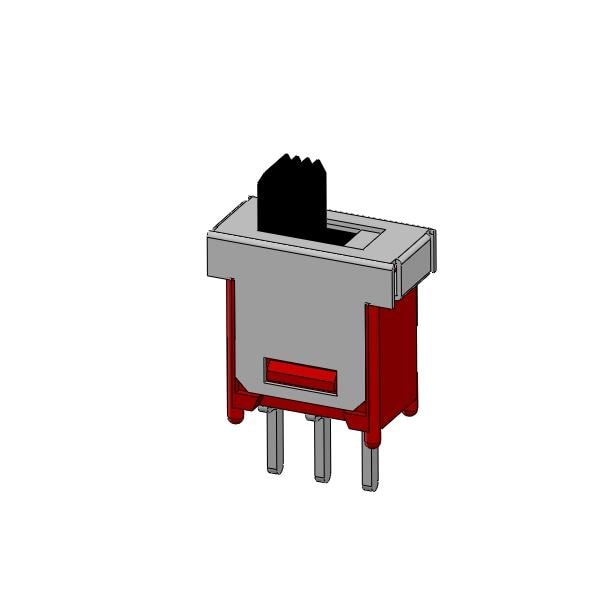

Mountain Switch 103-5000-EV Slide Switch ON-ON SPDT PC Mount
Manufacturer: Mountain Switch Model: 103-5000-EV - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Travel: 3.05 mm
Actuator: Extended
Illuminated: Non-Illuminated
Unit Weight: 1.100 g
Contact Form: SPDT
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Contact Plating: Silver
Switch Function: ON - ON
Termination Style: Solder Pin
Voltage Rating AC: 125 VAC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
