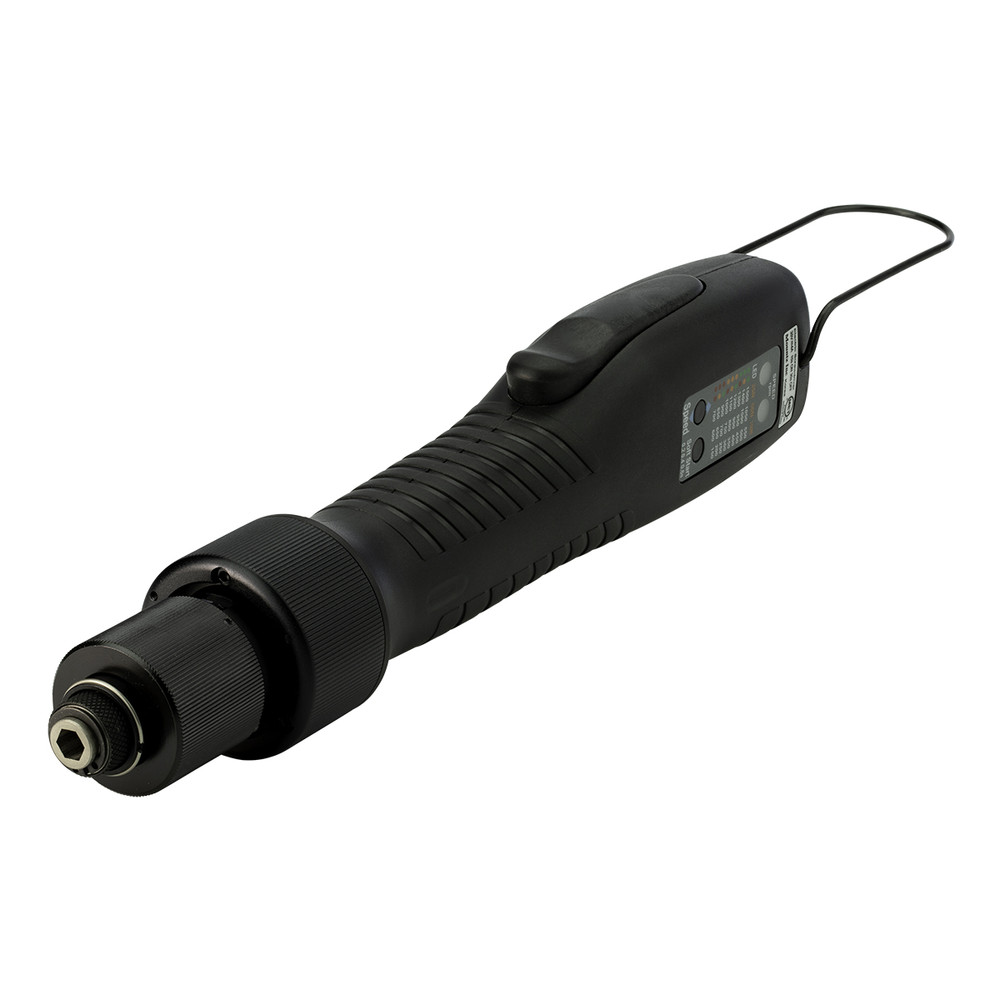

Mountz HF50N-A (145925) Brushless Electric Screwdriver (196.2 - 490.5 cN.m; 600-1050 r/m)

  • Manufacturer: Mountz
    Model: HF50N-A
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manuafacturer: Mountz
Model : HF50N-A
Item : 145925
Original: USA
Warranty : 12 month

Driver type : Lever start
Drive size: 1/4 F/Hex
Torque range:  17.4 - 43.4  lbf.in / 196.2 - 490.5 cN.m
Adjustable RPM : 600-1050 r/m
Size: Ø 1.5 inch x 11.33 inch
Weight: 28.6 oz / apprx 85.8 g

Remarks:  the transformer monitor or other accessories can be optional.

Detail

manual

datasheet

Accessories:

Datasheet HTC35

Manual HTC35

KEY FEATURES
- Various models that range from 17.4 - 87 lbf.in
- High performance Swiss Maxon brushless motor design provides
durability and reduces the standard maintenance costs for electric
screwdrivers.
- Designed for high production environments. Minimal heat build-up
even when tool is operated continuously.
-  Adjustable RPM setting on the tool. A selectable Soft Start mode
from 0.2-0.6 seconds.
- Over Heat Protection (OHP) and Over Current Protection (OCP)
protect driver from damage or malfunction. Features a LED display
that signals the tool status for the operator to view.
- Can be connected with the Scout Screw Counter.
- External torque adjustment scale.
- Requires HTC35 transformer (power supply).
- All models are ESD designed and prevent the occurrence of
electrostatic discharge, which improves production yields,
manufacturing costs, product quality, product reliability, reputation
and profitability.
