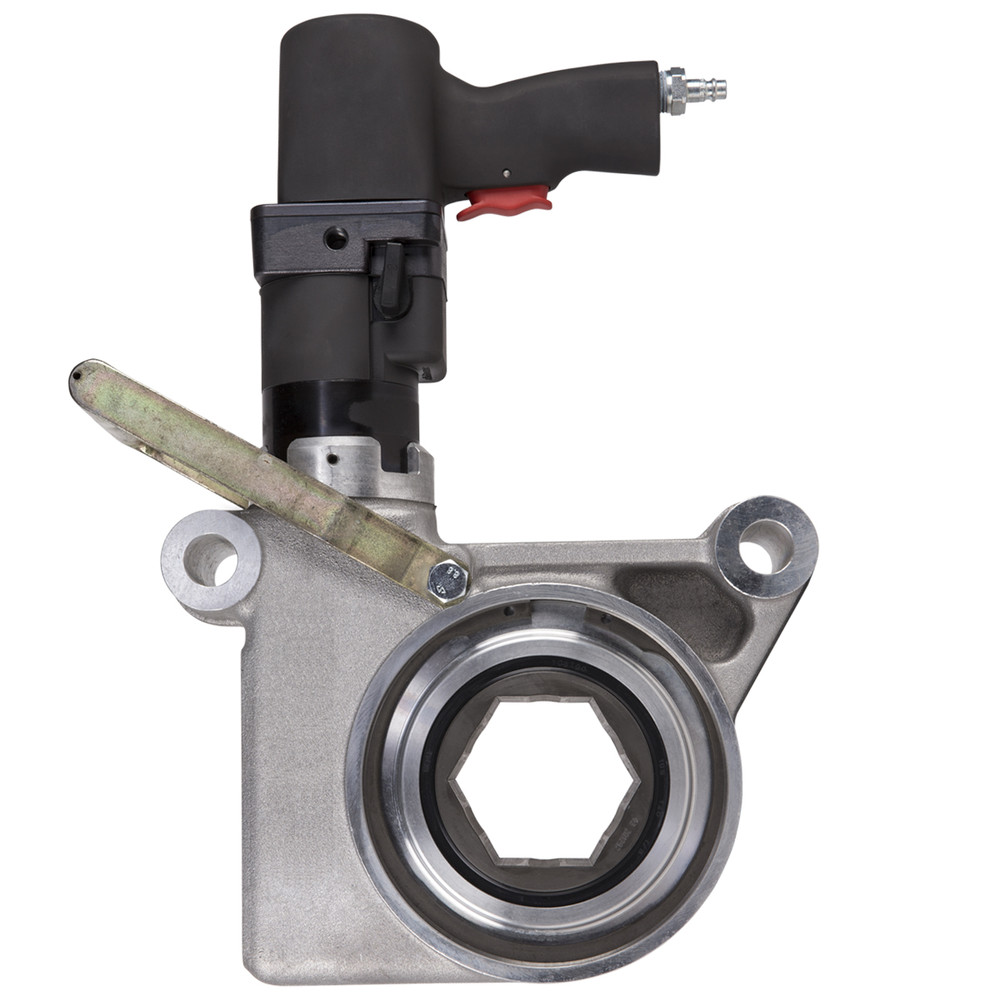

Mountz RCL-46P (210040) Pneumatic Torque Multiplier (630 - 4535 N.m; 1 - 3 r/m )

  • Manufacturer: Mountz
    Model: RCL-46P
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manuafacturer: Mountz
Model : RCL-46P
Item : 210040
Original: USA
Warranty : 12 month

Driver size: 46 mm Hex
Speed RPM: 1 - 3 r/m
Torque range :  465 - 3344 lbf.ft/ 630 - 4535 N.m
Size ( L x  W) : 435 x 188 mm
Weight: 27.5 lbs / 12.5 kg

Detail

datasheet

manual

FEATURES:
Radial gearing electric and pneumatic torque multipliers are designed for precision tightening and loosening of all heavy duty fastening applications. These multipliers are specially designed for heat plate exchanger applications. The torque multiplier shuts-off when the pre-set torque is achieved. It’s non-impacting and operates at a smooth, continuous rotation
Compact design is safe, easy, and simple to handle.
Low profile radial head allows access where clearance is limited.
Specially designed for heat plate exchanger applications.
Continuously rotating hex drive is faster than hydraulics and more reliable than impacting tools.
Torque reaction is absorbed by means of a reaction stud.
Hex drive size reduces or enlarges with “drop in” hex adapters.
Electric models - Universal AC Input (100-253V / 45-66 Hz) and features LED display.
