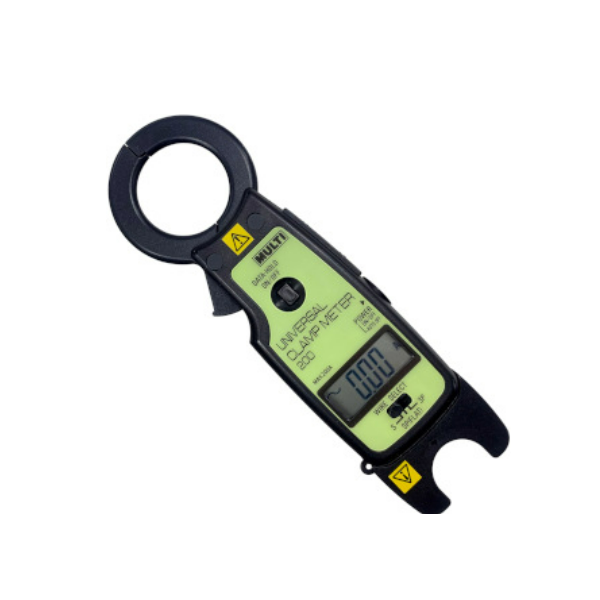

MULTI M-200 Universal Clamp Tester (20A/200A)
Manufacturer: MULTI Model: M-200 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Display: 3.5 digit LCD, max. reading of 1999
Jaw opening capability: 33mmφ
Sampling: 2 times/sec
Withstanding Voltage: AC 2200V 1 minute max.
Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )
Storage Temperature: -10℃ to 60℃, 70%RH max. ( Without condensation )
Power supply: 1.55V (SR-44, LR-44)×2
Power consumption: 2.5mW
Battery life: SR-44 (200 hours), LR-44 (100 hours)
Size: 54(W)×170(H)×21(D)mm
Weight: Approx. 100g
33mmφCT
Range: AC 0～20A/200A
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
Range/Resolution/Accuracy:
AC 20A/10mA/±1.2% rdg ± 5 dgt
AC 200A/100mA/±1.2% rdg ± 5 dgt
U type CT
Range: AC 200A
Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)
Max.size of conductor: 20mmφ
