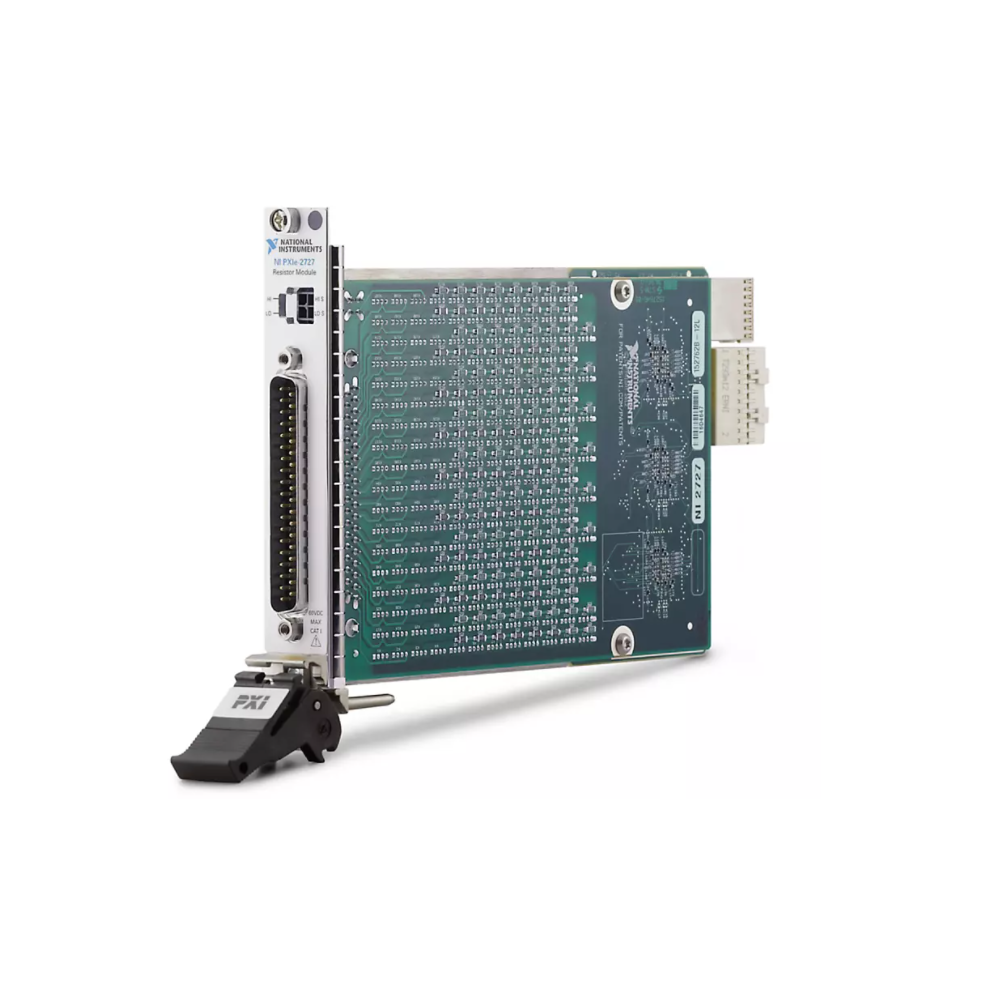

NI PXIe-2727 PXI Programmable Resistor Module (9 Channels, 16 kΩ)
Manufacturer: NI Model: PXIe-2727 P/N: 781986-27 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Bus Connector: PXIe
Maximum Resistance: 16 kOhm
Resistance Resolution: 0.25 Ohm
Number of Resistor Channels: 9
Replicates the behavior of resistance‐based devices by controlling a series of relays that varies resistance across each I/O connector channel.
PXI Programmable Resistor Modules are well‐suited for simulating environmental conditions in hardware‐in‐the‐loop (HIL) validation. The software included provides a simple user interface that accepts inputs in units of temperature or resistance, and configures the resistance across each channel. Each module uses a 37‐pin D‐SUB connector on the front panel, as well as a 2x2 Micro‐Fit connector for easy connection to a PXI Digital Multimeter (DMM).
Datasheet
