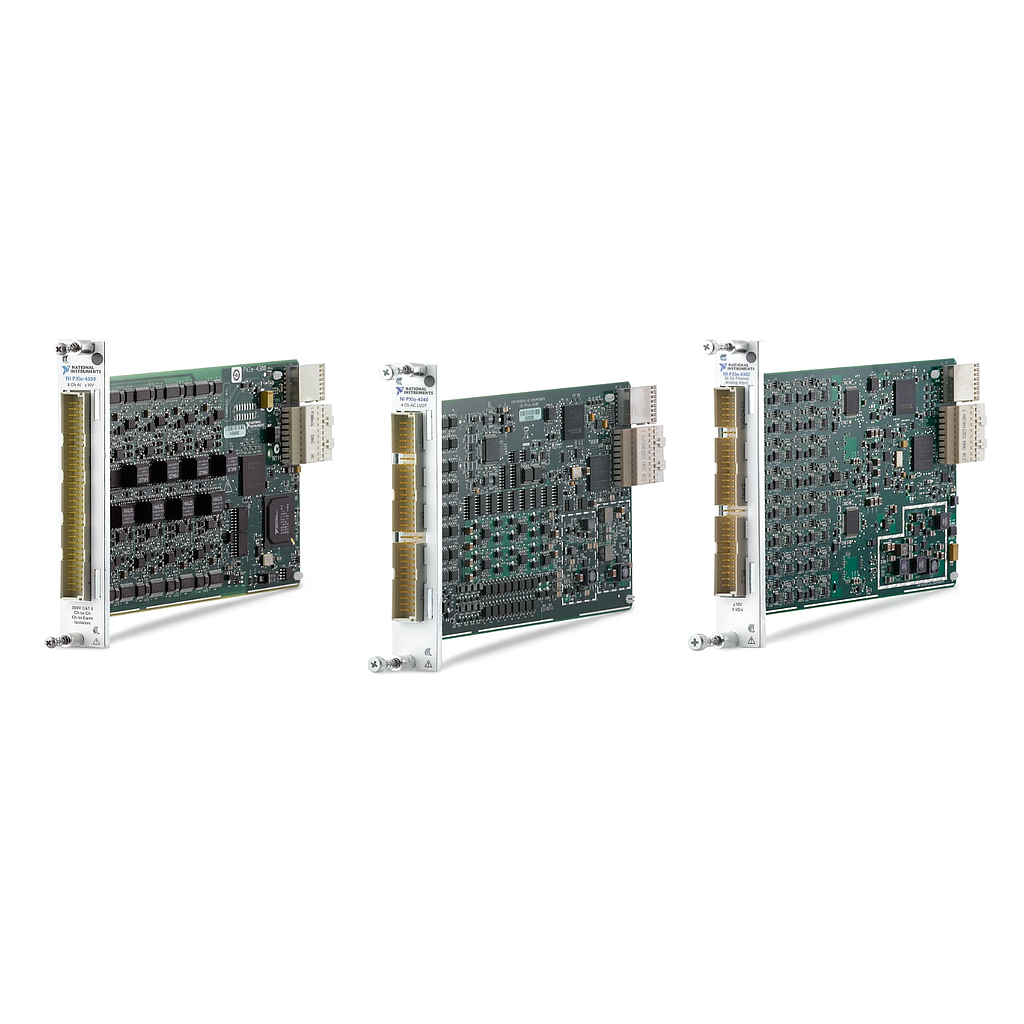

NI PXIe-4310 PXI Analog Input Module (8CH, 400 kS/s/ch, 16 bits, -600V~600V)
Manufacturer: NI Model: PXIe-4310 P/N: 784813-01 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 400 kS/s/ch
Analog Input Resolution: 16 bits
Analog Input Voltage Range: -600 V to 600 V -300 V to 300 V -120 V to 120 V -60 V to 60 V -10 V to 10 V -5 V to 5 V -2 V to 2 V -1 V to 1 V
Filtering: —
Discrete Low-Pass Filter: 10 kHz 100 kHz
Analog Input Isolation: 600 V Ch-Ch Isolation
Provides analog input signals for PXI systems.
The PXI Analog Input Module features multiple analog-to-digital converters (ADCs) as well as built-in signal conditioning. The module features sample rates that range from 5 kS/s/ch to 2 MS/s/ch. You can choose from modules that offer up to 28 bits of resolution and up to 32 simultaneous channels. Different PXI Analog Input Modules offer different types of isolation and filtering, so you can choose options that meet specific application needs. The module features increased accuracy, high data throughput, and are ideal for scalable measurement systems with low and high channel counts.The PXI Analog Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
