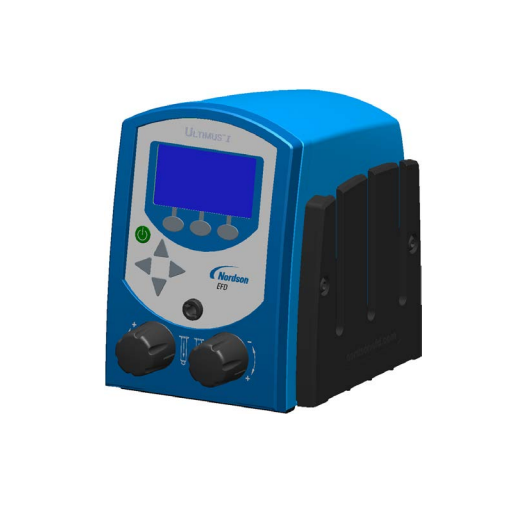

Nordson Ultimus I Dispenser (0-7 bar; calibrated)
Manufacturer: Nordson Model: Ultimus I P/N: 7012584 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Cabinet size: 14.3W x 18.1H x 17.3D cm (5.63W x 7.12H x 6.82D")
Weight: 2.3 kg (5.0 lb)
Power adapter: AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6A; DC output: 24 VDC @ 1.04A
Cycle rate: Exceeds 600 cycles per minute
Time range: 0.0001–999.9999 s
End-of-cycle feedback circuits: 5-24 VDC, 100 mA maximum
Cycle initiate: Foot pedal, finger switch, or 5–24 VDC signal
Input air pressure: 5.5–7.0 bar (80–100 psi)
Air output: 0–7.0 bar (0–100 psi
Pressure readout accuracy: ±0.1 bar (±2.0 psi)
Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS
