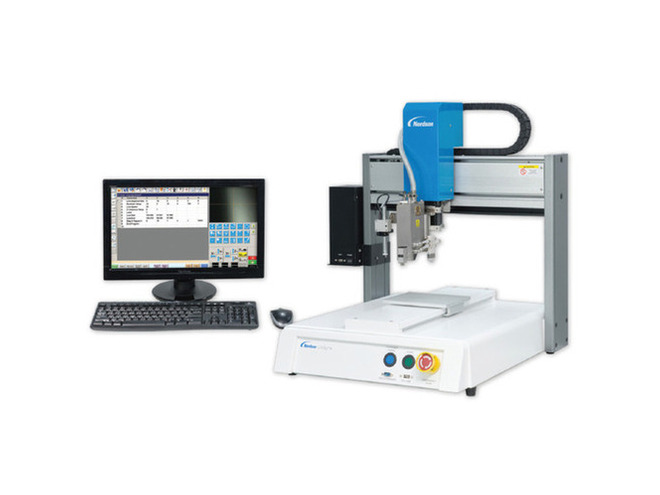

Nordson Unity 3 Automated dispensing systems (800/320 mm/sec; 300/300/100 mm)
Manufacturer: Nordson Model: Unity 3 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Maximum Working Area (X/Y/Z: 300/300/100mm (11.8/11.8/3.9 in.)
Workpiece Payload: 10kg (22lb)
Tool Payload: 5kg (11 lb)
Maximum Speed (per second): 800/320mm (31.4/12.5 in.)
Unit Weight: 39.5kg (87 lb)
Dimensions (WxHxD): 490x517x645mm (19.2x20.3x25.3in.)
Drive System: 3-phase micro stepping motor
Memory Capacity: 100 programs
500~50,000 points/program
Data Storage: CF card, USB
General Purpose I/O: 8 inputs/8 outputs (16/16 optional)
Drive Method: PTP and CP
Power Supply: Auto-switching, AC100–240 VAC, 320W
Interpolation: 3 axes (3D space)
Repeatability: ±0.02 mm
Working Temperature: 10–40° C (50–104° F)
