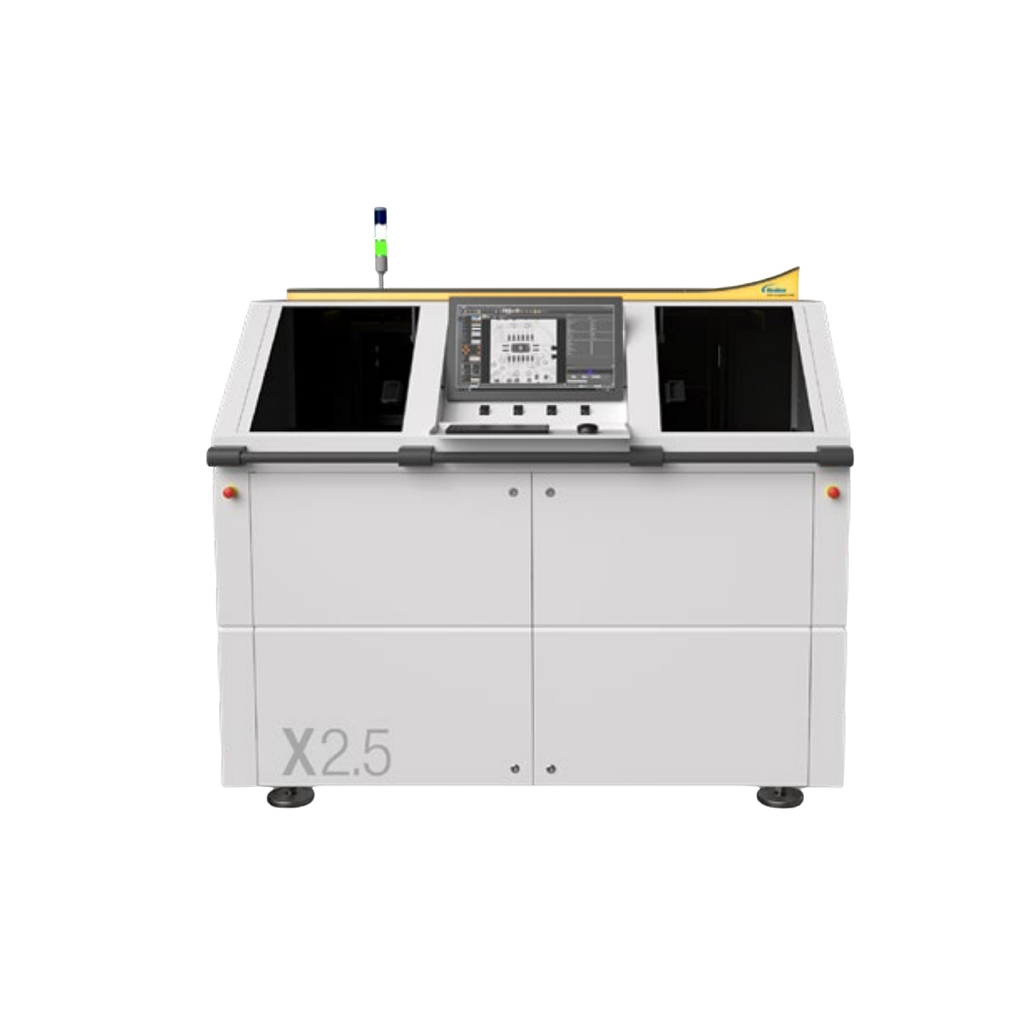

Nordson X2.5 Inline Automated X-ray Inspection System

Facilities

Dimensions: 1630 mm (H) x 1800 mm (W) x 1575 mm (D)

Adjustable conveyor height (SMEMA): 950 mm

Weight: 2800 kg

Safe Operating Temperature: 15° - 28 °C optimal 20° - 25° C

Power Consumption: max. 6 kW

Line Voltage: 400 VAC, 50/60 Hz 3 phase, 16 A/208 VAC, 50/60 Hz 3 phase, 25 A

Air: 5-7 Bar, < 2 l/min, filtered (30µ), dry, oil free

X-ray Image Chain

X-ray Source (sealed tube)

Energy: SMT-Setup; 130 kV/40 W

Grey resolution: 14 Bit

Detector Types: CMOS Flatpanel Detector 50 µm pixel size (6 MPix)

Inspection features

Max. sample size: 460 mm x 360 mm

Max. inspection area: 460 mm x 360 mm

Min. sample size: 80 mm x 80 mm

Sample thickness: 0.8-10 mm

Max. sample weight: 5 kg

Angle shot capability: up to 50 deg

Resolution: 3-4 µm/pix

Motion System

Multiple axes programmable motion system

Installed axes

x,y (linear drives): sample table

z (servo): magnification

u,v (linear drives): detector movement

Conveyor setup

Inline set-up: automatic width adjustment

Assembly clearance

Topside (incl. sample thickness): 35/50 mm

Bottom side (excl. sample thickness): 35/20 mm

Min. edge clearance for clamping: 3 mm

Inspection speed

X2.5 Transmission: (2D) + SFT™ + Off-Axis (2.5D)

Transmission (X2, X2.5, X3): up to 6 views/s

Off-Axis (X2.5, X3): up to 5 views/s

3D SART (X3): up to 1s/FoV

Dynamic Planar CT (X3): up to 3sec/ROI
