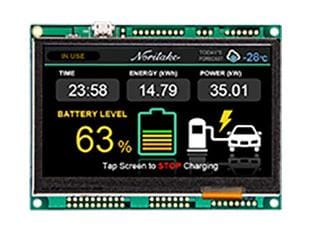

Noritake GTWQ043S3B00PW TFT LCD Display Modules GUI Design Tool Supported 4.3" Wide Temp
Manufacturer: Noritake Model: GTWQ043S3B00PW - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Diagonal: 4.3 in
Brightness: 850 cd/m2
Touch Panel: Capacitive Touch Panel
Backlighting: LED
Display Mode: Transmissive
Interface Type: I2C, SPI, UART
Viewing Area - W x H: 95.04 mm x 53.86 mm
Module Size - W x H x T: 108 mm x 80 mm x 9.5 mm
Operating Supply Current: 410 mA
Operating Supply Voltage: 5 V
Display Resolution - Pixels: 480 x 272
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
