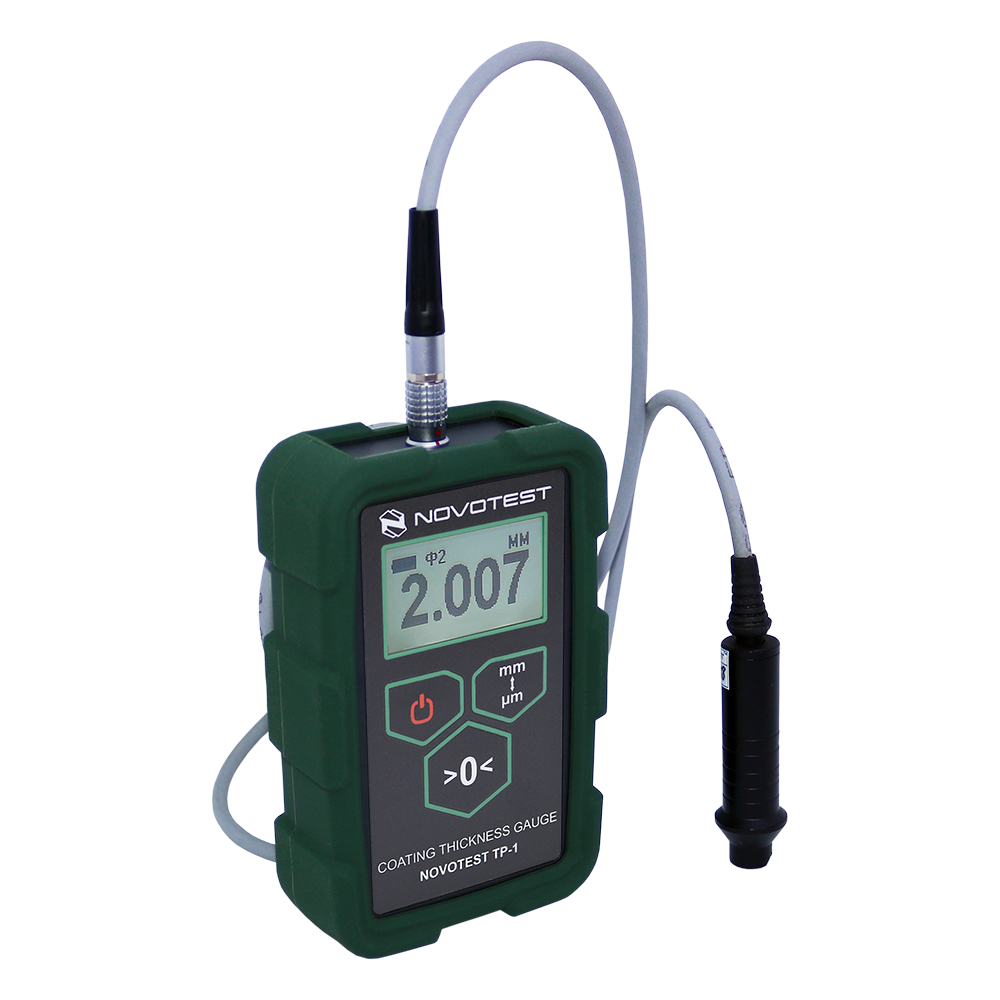

NOVOTEST TP-1M (gồm đầu đo NF-2) Coating Thickness Gauge (0µm~60mm)

Thickness measurement range (depends on probe type): 0µm … 60mm

Dimensions: 122x65x23mm

Operating temperature range: -20 … +40°C

Batteries: 2AA

Type of connectors of probes: Lemo

Storage of measurement results and PC software(optional): 256

Time of continuous work hours, not less: 20

Weight of electronic unit with batteries, no more: 0.2kg

Standard package:

- Thickness gauge electronic unit TP-1M

- Probe(s)

- Set of reference thickness samples

- Batteries (AA) – 2 pcs

- Charger

- Operating manual

- Case

Optional Probes:

- Probe F-0,3: Measurement of paint and varnish and galvanic coatings

- Probe F-0,5: Measurement of paint and varnish and galvanic coatings

- Probe F-2: Measurement of paint and varnish coatings

- Probe F-5: Measurement of paint and varnish and mastic coatings

- Probe NF-2: Measurement of anodic-oxide films and paint coatings

- Probe M-12: Measurement of mastic coatings

- Probe M-30: Measurement of mastic coatings

- Probe M-60: Measurement of mastic coatings

- Probe DSH: Measurement of surface roughness after sand and shot blasting

- Probe DT: Temperature measurement

- Probe DTVR: Measurement of temperature, humidity and dew point
