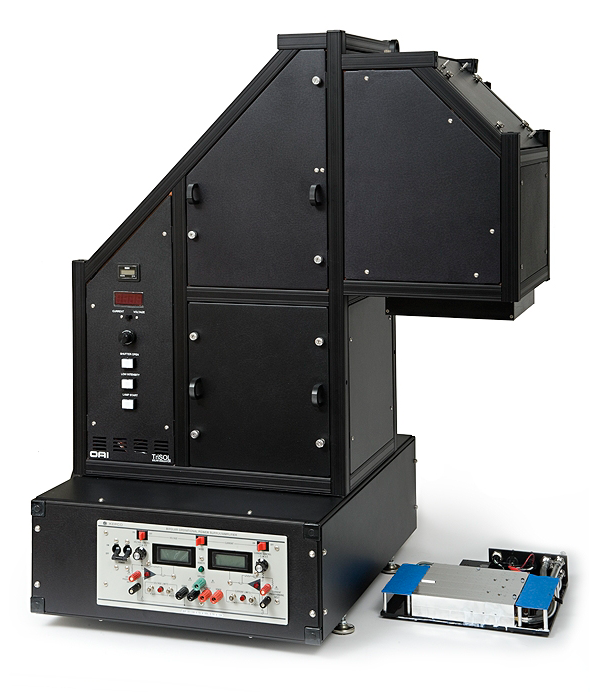

OAI Large Area Full Room Solar Simulator TriSOL™ Large Area Solar Simulator
Manufacturer: OAI Model: Large Area Full Room Solar Simulator - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Special: Constant Current and Intensity
Spectral Type: AM 1.5G and D, AM0
Spectrum Range: Options 280 - 1800nm
Beam Direction Configuration Options: 1. Horizontal
2. Downward
3. Upward
Illumination Area: up to 5m x 5m x 5m(Volume)
Collimated angle: Half angle: <±30°
Typical Power Output: 100mW/cm2(1Sun)
Spatial Uniformity: ≤10% (Class C)
Temporal (ST) : <0.5% STI &
<2.0% LTI (Class A)
Spectral Match: ≤±15% (Class A+)
Working Distance: up to 5m
Lamp Power: up to 77 x 7KW
Power Requirements: up to 600KW 460/265VAC, 5Wire, 3P, 1100A
