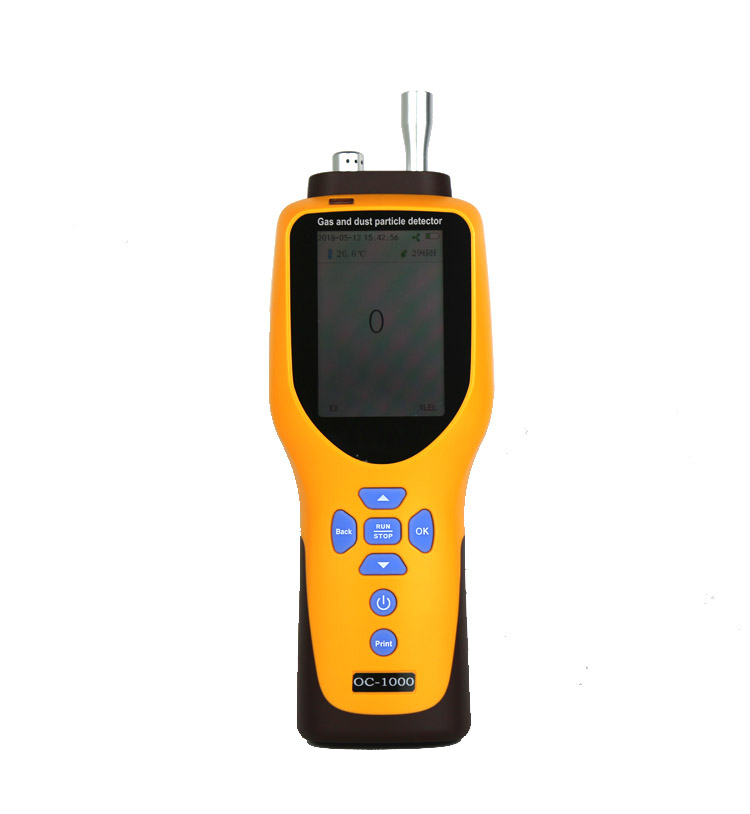

Oceanus OC-1000 Portable Multi Gas Detector For NH3/H2S/LEL (H2S: 0~100ppm/Ex: 0~100%LEL/NH3: 0~100ppm)

Gas type: NH3, H2S, LEL

Working principle:

Catalytic combustion sensor for LEL

Electrochemical sensor for NH3, H2S

Sampling mode: Pump-suction sampling

Measuring range:

H2S: 0~100ppm

Ex: 0~100%LEL

NH3: 0~100ppm

Resolution:

NH3: 0.01ppm

H2S: 0.01ppm

Ex: 0.01%LEL

Precision: ±3%F.S

Temp & Humidity testing range:

Temperature: -40~120℃

Humidity: 0~100% RH

Data storage function: With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer.

Printer: Optional mini-printer

Response time: ≤20s(T90)

Recovery time: ≤20s

Repeatability: ≤±1%

Linearity: ≤±1%

Zero drift: ≤±1%(F.S/year)

Concentration unit: ppm, %vol, %lel, mg/m3

Display: LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery.

Operation language: Chinese/English

Alarm mode: Audible, visual, vibration

Working temperature: -40~120℃

Working humidity: 0-95%RH(non-condensing)

Working pressure: -30Kpa ~ 100Kpa

Explosion-proof grade: Ex ia IIC T4 Ga

Protection grade: IP65

Shell material: ABS+PC

Dimensions: 220*88*55mm

Weight: 0.5KG

Standard accessory: Particle filter, box, instruction, USB charger , data line, calibration cap.
