Olamef TP6/V/1 Cutting bending forming machine for axial components vertical mounting (vertical mounting)
Manufacturer: Olamef Model: TP6/V/1 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536

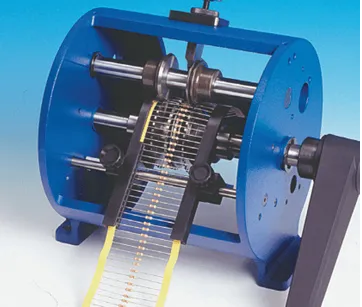

The TP6/V/1 model is designed for cutting and bending taped axial components for vertical mounting. It operates lead components with a diameter from 0.5 to 0.8 mm. The bending pitch is determined by the bending cam supplied, and can be changed by replacing the cam with one of a different thickness.
WARNING: THE LENGTH OF THE LEAD BETWEEN THE BODY AND THE TAPE FOR A PITCH OF 2.54 MM NEEDS TO BE AT LEAST THE LENGTH OF THE BODY PLUS 12 MM
PITCHES THAT ARE LONGER THAN THE LEAD REQUESTED NEED TO BE INCREASED IN RELATION.
