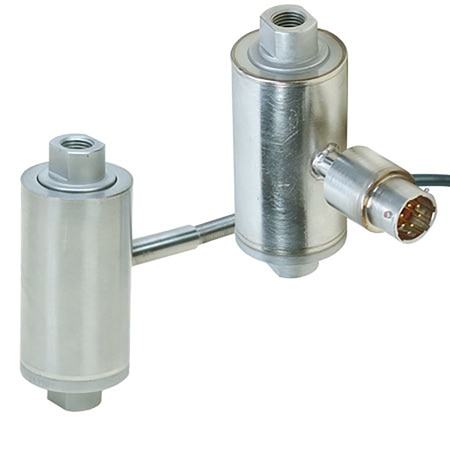

OMEGA LC711-250 Low Capacity, Female/Female, Inline Tension Link Load Cell (250 lbF)

Height: 3.13 in

Weight: 1 lb

Accuracy: ± 0.15 %

Linearity: ± 0.10%

Materials: Stainless Steel

Force Type: Tension

Hysteresis: ± 0.10%

Cable Length: 0 ft

Overload, Max: 300% FS

Repeatability: ± 0.05%

Safe Overload: 150% FS

Load Cell Type: Tension Link

Outer Diameter: 1.25 in

Supply Voltage: 10 Vdc

Mating Connector: MIL-26482-I 10-6S

Bridge Resistance: 350 Ω

Electrical Output: 3 mV/V

Enclosure Ratings: IP65

Supply Power Note: 10 Vdc, 15 Vdc maximum

Calibration Option: 5 POINT NIST

Load Cell Capacity: 250 lbF

Zero/Balance Error: ± 1%

5-Point Calibration: 0%, 50%, 100%, 50%, 0% (in tension)

Thermal Span Effect: ± 0.007% rdg/°C

Thermal Zero Effect: ± 0.0045% FSO/°C

Additional Features 1: Internal Thread Design

Electrical Connection: MIL-26482-I 10-6P

Full Scale Deflection: 0.004 in

Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

Process Temperature, Max: 71 °C

Process Temperature, Min: 16 °C

Operating Temperature, Max: 121 °C

Operating Temperature, Min: -46 °C
