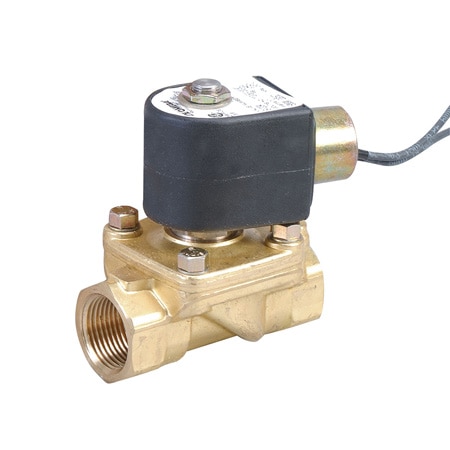

OMEGA SV234 2-Way, NC, Direct Lift, Brass, Solenoid Valves for Steam (5.5 gal/min, 3/4 in, NPT Male, 5/8 in, Direct Lift, Normally Closed)
Manufacturer: OMEGA Model: SV234 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Mounting: Pipe mounting, any direction
Cv Factor: 5.5 gal/min
Materials: Brass, EPDM
Coil Power: 22 W
Duty Cycle: 100%
Media Type: N/A
Valve Type: Direct Lift
Orifice Size: 5/8 in
Supply Voltage: 120 Vac
Valve Position: Normally Closed
Static Pressure: 5 times max psid
Enclosure Ratings: IP65, NEMA Type 4
Materials, Wetted: Brass, Copper, EPDM, Stainless Steel
Supply Power Note: 22 W, 120 Vac, 50 to 60 Hz, Class H
Open Response Time: 30 to 100 ms
Close Response Time: 350 to 900 ms
Media Compatibility: Steam
Operating Pressure, Max: 45 psi
Operating Pressure, Min: 0 psi
Process Connection Size: 3/4 in
Process Connection Type: NPT Male
Process Temperature, Max: 145 °C
Operating Temperature, Max: 50 °C
Operating Temperature, Min: -9 °C
