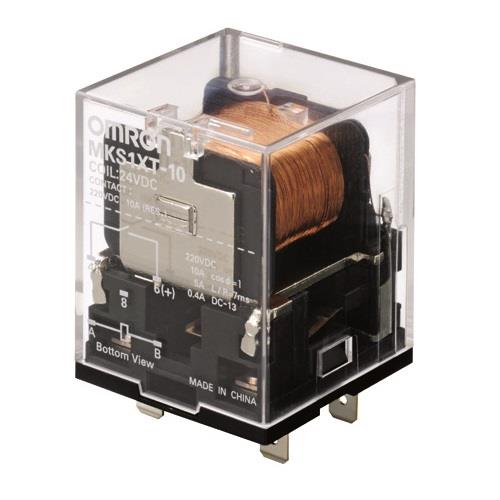

Omron Automation and Safety MKS1XTN-10 DC12 Compact Built-in Op Indctr SPST-NO, DC12
Manufacturer: Omron Automation and Safety Model: MKS1XTN-10 DC12 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 34.5 mm
Height: 44 mm
Length: 34.5 mm
Coil Type: Non-Latching
Unit Weight: 80 g
Coil Current: 126 mA
Coil Voltage: 12 VDC
Contact Form: SPST (1 Form A)
Mounting Style: Panel Mount
Coil Resistance: 95 Ohms
Coil Termination: Quick Connect
Contact Material: Silver Tin Indium (AgSnIn)
Power Consumption: 1.5 W
Switching Voltage: 220 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Quick Connect
Contact Current Rating: 10 A
Maximum Switching Current: 10 A
