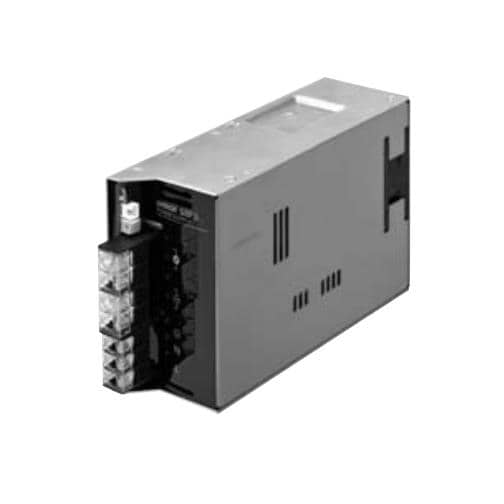

Omron Automation and Safety S8FS-G60024C Switching Supplies PS 600W 24V 27A DIRECT MOUNT
Manufacturer: Omron Automation and Safety Model: S8FS-G60024C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 120 mm (4.724 in)
Height: 61 mm (2.402 in)
Length: 190 mm (7.48 in)
Industry: Industrial
Approvals: CSA, UL
Efficiency: 90 %
Output Power: 600 W
REACH - SVHC: Details
Input Voltage: 85 VAC to 264 VAC, 120 VDC to 350 VDC
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Not Regulated
Isolation Voltage: 3 kV
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 27 A
Output Voltage-Channel 1: 24 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 20 C
