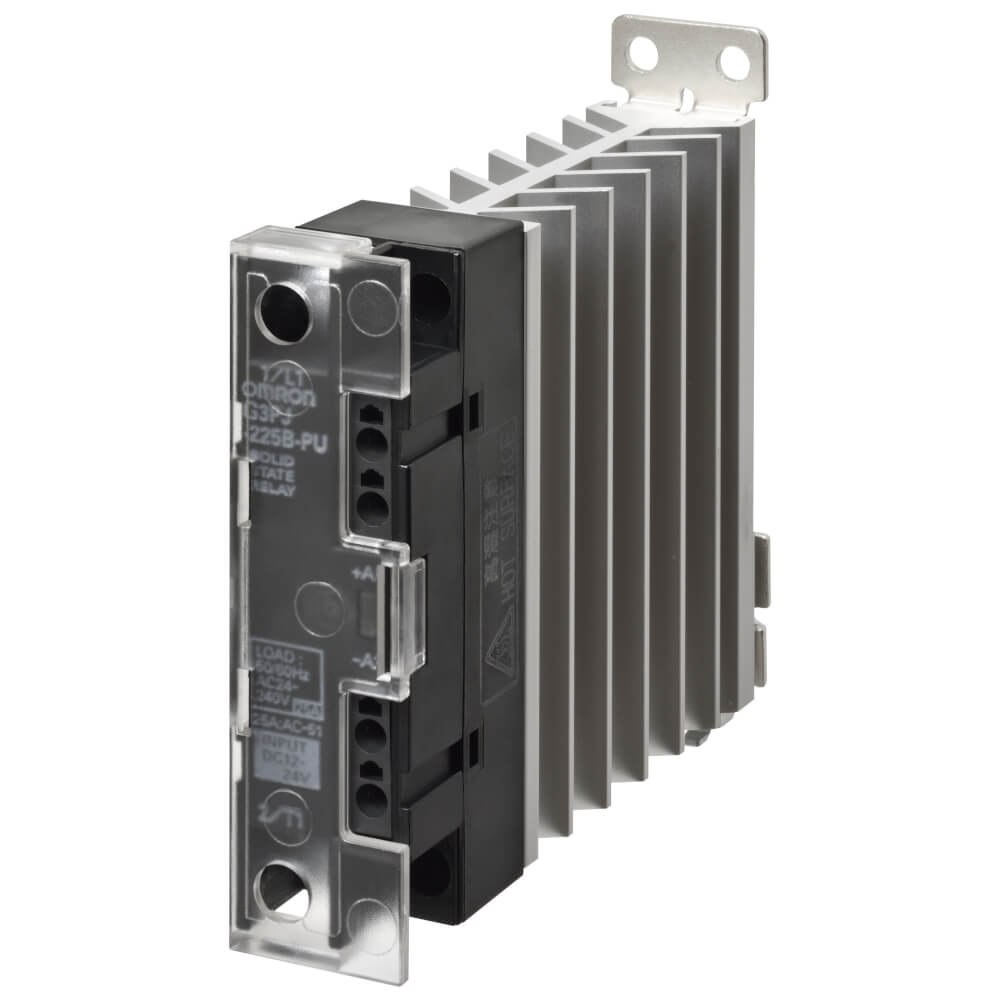

OMRON G3PJ-525B-PU DC12-24 Solid State Relay for Heaters (1 phase, 12-24VDC)
Manufacturer: OMRON Model: G3PJ-525B-PU DC12-24 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Application: Power control
Number of phases: 1
Number of poles: 1
Mounting method: DIN rail/screw
Terminal: Push-in, Screw
Complete with socket: X
LED indicator: ✓
Rated operational voltage, AC: 100-480 V
Operating voltage range, AC: 75-528 V
Rated operation current Ie at AC-1: 27 A
Rated load current Close mounting: 25 A
Permissible I²t value: 6600 A²s
Product Height (unpacked): 100 mm
Product Width (unpacked): 22.5 mm
Product Depth (unpacked): 100 mm
Supply voltage DC: 12-24 V
Control current max.: 7 mA
Must operate voltage max.: 9.6 V
Must release voltage min.: 1 V
Maximum operating temperature: 80 °C
Minimum operating temperature: -30 °C
Isolation: Phototriac
