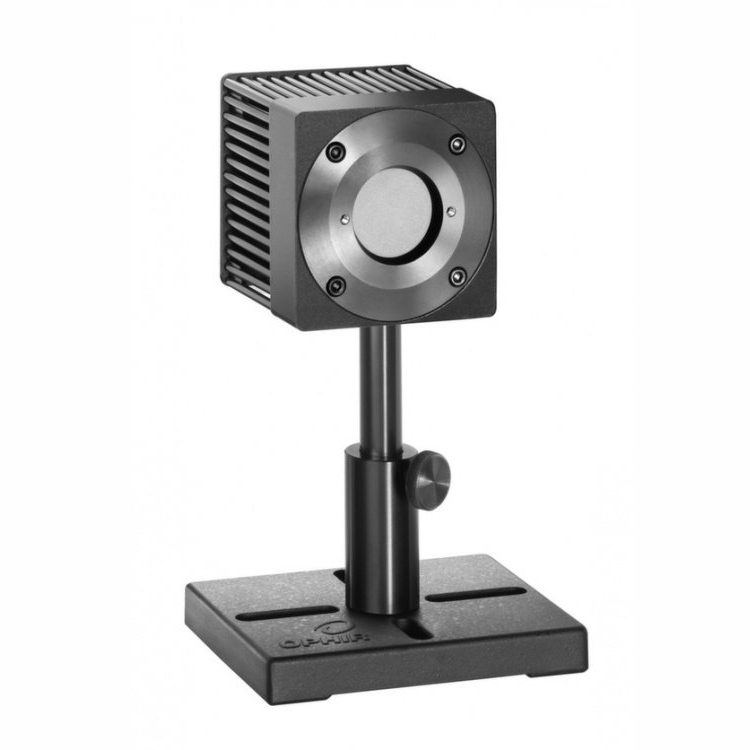

Ophir 50(150)A-BB-26 Low Power Thermal Sensor (40mW-150W)
Manufacturer: Ophir Model: 50(150)A-BB-26 P/N: 7Z02696 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Absorber Type: Broadband
Aperture: Ø26mm
Spectral Range: 0.19-20µm
Power Range: 40mW-150W
Energy Range: 20mJ-100J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 64 D (mm)
Max Pulse Energy: 100J
Max Average Power Density: 12kW/cm²
Response Time: 1.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 150W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
