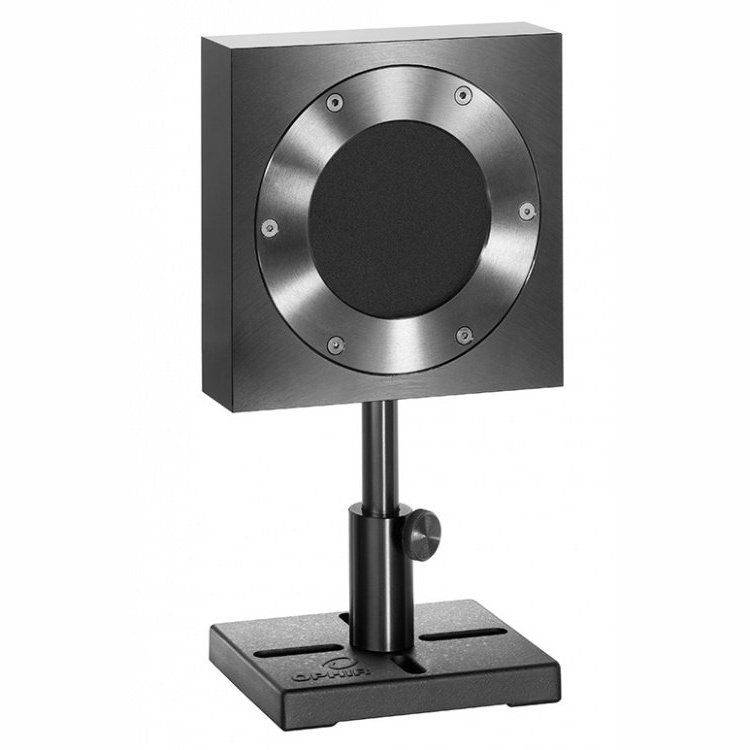

Ophir L50(300)A-LP2-65 Medium Power Thermal Sensor (400mW-300W)
Manufacturer: Ophir Model: L50(300)A-LP2-65 P/N: 7Z02782 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Absorber Type: LP2
Aperture: Ø65mm
Spectral Range: 0.25-2.2µm
Power Range: 400mW-300W
Energy Range: 200mJ - 1000J
Dimensions: 120 L x 120 W x 30 D (mm)
Max Pulse Energy: 1000J
Max Average Power Density: 17kW/cm²
Response Time: 3 s
Max Energy Density (for <100ns): 0.1J/cm²
Max Energy Density (for 2ms): 130J/cm²
Max Average Power: 300W
Compliance: CE, UKCA, China RoHS
