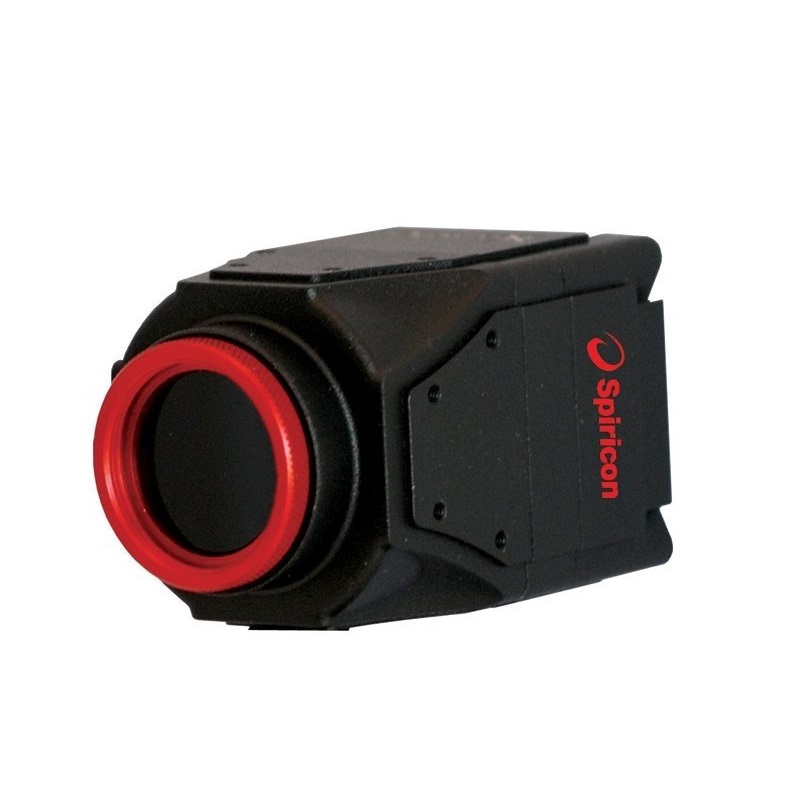

Ophir LT665 Beam Profiling Camera (190 - 1100nm)
Manufacturer: Ophir Model: LT665 P/N: SP90377 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Wavelengths: 190-1100nm
Beam Sizes: 46μm - 9.9mm
Interface: USB 3.0
Sensor Type: Silicon CCD
Compatible Light Sources: CW, Pulsed
Active Area: 12.5mm x 10.0mm
Number of effective pixels: 2752 x 2192
Effective Pixel Pitch: 4.54µm
Damage threshold: 50W/cm2/ 1J/cm for < 100ns pulse width
Dynamic Range: 54 dB
Frame Rate at Full Resolution: 27fps
Dimensions: 43mm x 43mm x 65mm
Compliance: CE, UKCA, China RoHS
BeamGage Standard: BGS-USB3-LT665
