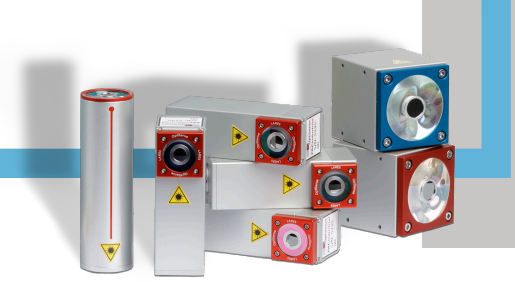

OptiSense Tube-LLP3.5 Paint Checker industrial Laser Sensors (0.3 mm; 35 mm; 1 - 1000 µm)
Manufacturer: OptiSense Model: Tube-LLP3.5 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Model: Tube-LLP3.5
Design: Laser, Cylinder
Measurement range: 1 - 1000 µm
Measurement rate: max. 2.5 Hz
Measurement time: 125 - 1000 ms
Operating mode: pulsed operation
Resolution: 1 % of reading (typical)
Accuracy: 3 % of reading (typical)
Measuring distance from lens: 35 mm
Distance tolerance: ± 2.5 mm
Angular tolerance: ± 15 °
Size of measuring field Ø: 0.3 mm
Optical power: 650 mJ
Wavelength: 1470 nm
Laser class : 1M
Eye safety : yes
Dimensions (L x W x H): Ø30 x 102 mm
Weight: 150 g
IP Code: IP 50
Delivery Contents
• Sensor
Accessories
• Cable
• Sensor holder on request
