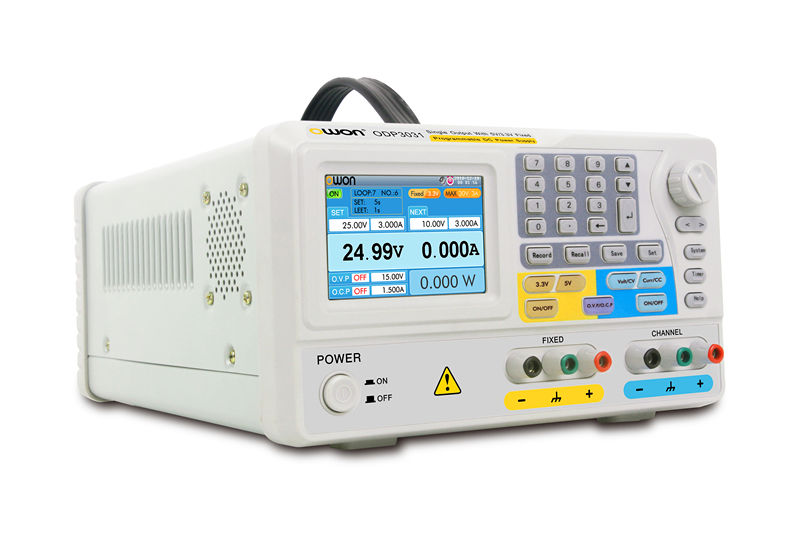

OWON ODP3031 Series power supply (30V/3A, 3.3/5V)
Manufacturer: OWON Model: ODP3031 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
| Model | ODP3031 | ODP3032 | |||
| Channel | One controllable channel | Fixed 3.3V / 5V | Two controllable channels | Fixed 5V | |
| DC Output Rating | Voltage | 0 - 30V | 3.3V / 5V | 0- 30V (Independent / Parallel) 0 - 60V (Series) -30V - 30V (Plus-minus) |
5V |
| Current | 0 - 3A | 3A | 0 - 3A (Independent / Series / Plus-minus) 0 - 6A (Parallel) |
3A | |
| Line Regulation | CV | ≤0.01%+3mV | ≤3mV | ≤0.01%+3mV | ≤3mV |
| CC | ≤0.1%+3mA | ≤0.1%+3mA | |||
| Load Regulation | CV | ≤0.01%+3mV | ≤0.1% + 3mV | ≤0.01%+3mV | ≤0.1% + 3mV |
| CC | ≤0.2%+3mA | ≤0.2%+3mA | |||
| Noise and Ripple (20Hz～7MHz) |
CV | ≤300μVrms/2mVpp | |||
| CC | ≤3mArms | ≤3mArms | |||
| Settings Resolution | Voltage | 1mV | None | 1mV | None |
| Current | 1mA | None | 1mA | None | |
| Settings Accuracy (25℃±5℃) |
Voltage | ≤0.05%+3mV | None | ≤0.05%+3mV | None |
| Current | ≤0.1%+3mA | None | ≤0.1%+3mA | None | |
| Read Back Resolution | Voltage | 1mV (＜10V), 10mV (≥10V) | None | 1mV (＜10V), 10mV (≥10V) | None |
| Current | 1mA | None | 1mA | None | |
| Read Back Accuracy (25℃±5℃) |
Voltage | ≤0.05%+3 digit | None | ≤0.05%+3 digit | None |
| Current | ≤0.1%+3 digit | None | ≤0.1%+3 digit | None | |
Display
| Display Type | 3.9 inch colored LCD (Liquid Crystal Display) |
| Display Resolution | 480 × 320 pixels |
| Display Color | 65536 colors, TFT screen |
Mechanical Specifications
| Model | ODP3031 | ODP3032 |
| Dimension (W×H×D) | 298 × 202 × 450 (mm) | |
| Weight (without package) | 7 kg | 9.80 kg |
| Model | ODP3031 | ODP3032 | |||
| Channel | One controllable channel | Fixed 3.3V / 5V | Two controllable channels | Fixed 5V | |
| DC Output Rating | Voltage | 0 - 30V | 3.3V / 5V | 0- 30V (Independent / Parallel) 0 - 60V (Series) -30V - 30V (Plus-minus) |
5V |
| Current | 0 - 3A | 3A | 0 - 3A (Independent / Series / Plus-minus) 0 - 6A (Parallel) |
3A | |
| Line Regulation | CV | ≤0.01%+3mV | ≤3mV | ≤0.01%+3mV | ≤3mV |
| CC | ≤0.1%+3mA | ≤0.1%+3mA | |||
| Load Regulation | CV | ≤0.01%+3mV | ≤0.1% + 3mV | ≤0.01%+3mV | ≤0.1% + 3mV |
| CC | ≤0.2%+3mA | ≤0.2%+3mA | |||
| Noise and Ripple (20Hz～7MHz) |
CV | ≤300μVrms/2mVpp | |||
| CC | ≤3mArms | ≤3mArms | |||
| Settings Resolution | Voltage | 1mV | None | 1mV | None |
| Current | 1mA | None | 1mA | None | |
| Settings Accuracy (25℃±5℃) |
Voltage | ≤0.05%+3mV | None | ≤0.05%+3mV | None |
| Current | ≤0.1%+3mA | None | ≤0.1%+3mA | None | |
| Read Back Resolution | Voltage | 1mV (＜10V), 10mV (≥10V) | None | 1mV (＜10V), 10mV (≥10V) | None |
| Current | 1mA | None | 1mA | None | |
| Read Back Accuracy (25℃±5℃) |
Voltage | ≤0.05%+3 digit | None | ≤0.05%+3 digit | None |
| Current | ≤0.1%+3 digit | None | ≤0.1%+3 digit | None | |
Display
| Display Type | 3.9 inch colored LCD (Liquid Crystal Display) |
| Display Resolution | 480 × 320 pixels |
| Display Color | 65536 colors, TFT screen |
Mechanical Specifications
| Model | ODP3031 | ODP3032 |
| Dimension (W×H×D) | 298 × 202 × 450 (mm) | |
| Weight (without package) | 7 kg | 9.80 kg |
|
Model |
ODP3031 |
||
|
Channel |
One controllable channel |
Fixed 3.3V / 5V |
|
|
DC Output Rating |
Voltage |
0 - 30V |
3.3V / 5V |
|
Current |
0 - 3A |
3A |
|
|
Line Regulation |
CV |
≤0.01%+3mV |
≤3mV |
|
CC |
≤0.1%+3mA |
|
|
|
Load Regulation |
CV |
≤0.01%+3mV |
≤0.1% + 3mV |
|
CC |
≤0.2%+3mA |
|
|
|
Noise and Ripple |
CV |
||
|
CC |
≤3mArms |
|
|
|
Settings Resolution |
Voltage |
1mV |
None |
|
Current |
1mA |
None |
|
|
Settings Accuracy |
Voltage |
≤0.05%+3mV |
None |
|
Current |
≤0.1%+3mA |
None |
|
|
Read Back Resolution |
Voltage |
1mV (＜10V), 10mV (≥10V) |
None |
|
Current |
1mA |
None |
|
|
Read Back Accuracy |
Voltage |
≤0.05%+3 digit |
None |
|
Current |
≤0.1%+3 digit |
None |
|
Display
|
Display Type |
3.9 inch colored LCD (Liquid Crystal Display) |
|
Model |
ODP3031 |
||
|
Channel |
One controllable channel |
Fixed 3.3V / 5V |
|
|
DC Output Rating |
Voltage |
0 - 30V |
3.3V / 5V |
|
Current |
0 - 3A |
3A |
|
|
Line Regulation |
CV |
≤0.01%+3mV |
≤3mV |
|
CC |
≤0.1%+3mA |
|
|
|
Load Regulation |
CV |
≤0.01%+3mV |
≤0.1% + 3mV |
|
CC |
≤0.2%+3mA |
|
|
|
Noise and Ripple |
CV |
||
|
CC |
≤3mArms |
|
|
|
Settings Resolution |
Voltage |
1mV |
None |
|
Current |
1mA |
None |
|
|
Settings Accuracy |
Voltage |
≤0.05%+3mV |
None |
|
Current |
≤0.1%+3mA |
None |
|
|
Read Back Resolution |
Voltage |
1mV (＜10V), 10mV (≥10V) |
None |
|
Current |
1mA |
None |
|
|
Read Back Accuracy |
Voltage |
≤0.05%+3 digit |
None |
|
Current |
≤0.1%+3 digit |
None |
|
Display
|
Display Type |
3.9 inch colored LCD (Liquid Crystal Display) |
|
Display Resolution |
480 × 320 pixels |
|
Display Color |
65536 colors, TFT screen |
Mechanical Specifications
|
Model |
ODP3031 |
ODP3032 |
|
Dimension (W×H×D) |
298 × 202 × 450 (mm) |
|
|
Weight (without package) |
7 kg |
9.80 kg |
