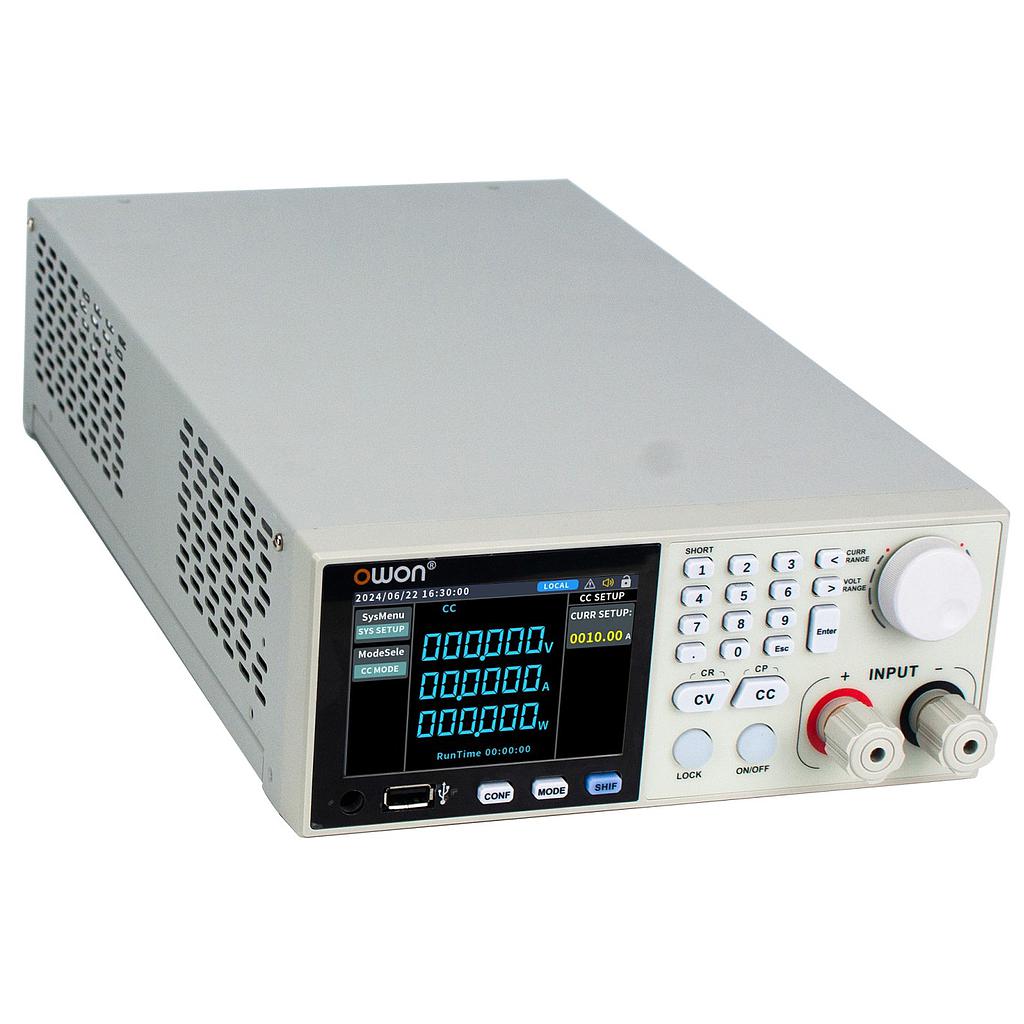

OWON OEL8512C DC Electronics Load (400W, 0-600V/40A)
Manufacturer: OWON Model: OEL8512C - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Rated input
Voltage: 0 - 600V
Current: 0 - 40A
Power: 400W
Minimum Operate Voltage: 1.1V@40A
Range(CV): 0 - 600V
Resolution(CV): 1mV
Range (CC): 0 - 40A
Resolution (CC): 1mA
Range (CR): 0.05Ω - 7.5kΩ
Range (CP): 400W
Resolution (CP): 10mW
Dynamic Mode
T1&T2: 0.1ms - 50s
Rise/Fall Slope: 0.01A/ms-2000A/ms
Minimum Rise Time: 20us
Readback Range (V): 0 - 600V
Readback Resolution (V): 1mV
Readback Range (A): 0 - 40A
Readback Resolution (A): 0.1mA
Readback Range (w): 0 - 400W
Readback Resolution (w): 10mW
Protection: Overpower Protection, Overvoltage Protection, Overcurent Protection, Overtemperature
Short: CC mode, CV mode. CR mode
Interface: RS-232 support SCPI
Safety: Complies with European EMC Directive 89/336/EEC for Class A testing and measurement products
Withstand Voltage: 500V/DC, 1mA (output to ground); 1.5kVAC, 5mA (input to ground)
Dimension (W/H/D): 215 x 88 x 375 mm
Weight (KG): 5
