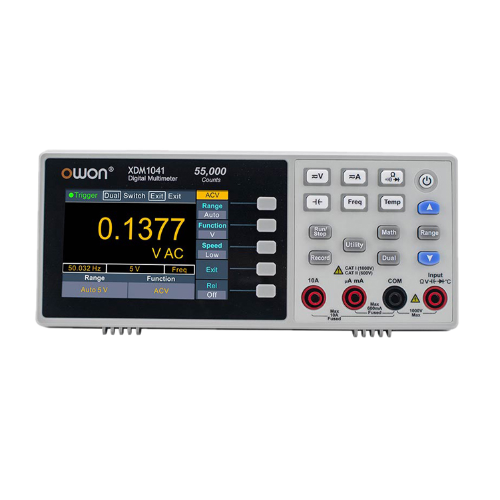

OWON XDM1041 Bench-Type Digital Multimeter (4 1/2 Digits)
Manufacturer: OWON Model: XDM1041 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
DC Voltage: 5.000V/50.00V/500.0V/1000.0 V
Resolution: 0.001mV/ 0.1 V
Accuracy: ±(0.025%+5) ~ ±(0.1%+10)
AC Voltage: 500mv-750v
Resolution: 20Hz～1KHz
Accuracy: ±(0.5%+30) ~ ±(1%+30)
DC Current: 500uA/5000uA/50mA/500mA/5A/10A
Resolution: 0.01uA ~ 0.001A
Accuracy: ±(0.15%+10) ~ ±(0.5%+10)
AC Current: 500uA~500mA/5A~10A
Resolution: 20 Hz ~ 1 kHz
Accuracy: ±(0.5%+20) ~ ±(1.5%+20)
Resistance: 500Ω/5KΩ/50KΩ/500KΩ/5MΩ/50MΩ
Resolution: 0.01Ω~ 0.001MΩ
Accuracy: ±(0.1%+5) ~ ±(2.5%+5)
Four-wire resistance: 500Ω/5KΩ/50KΩ
Resolution: 0.001Ω ~ 0.001KΩ
Accuracy: ±(0.1%+5) ~ ±(0.1%+10)
Frequency: 10.000Hz–60MHz/±(0.2%+8)
Capacitance: 50nF~500uF/(2.5%+5); 5mF~50mF/(5%+8)
Diode: 3.0000 V/0.0001V
Continuity: 1000Ω/0.1Ω
Display: 55.000
Dimensions (W×H×D): 235 x 88x 65 (mm)
Device Weight: Approximately 0.45kg
