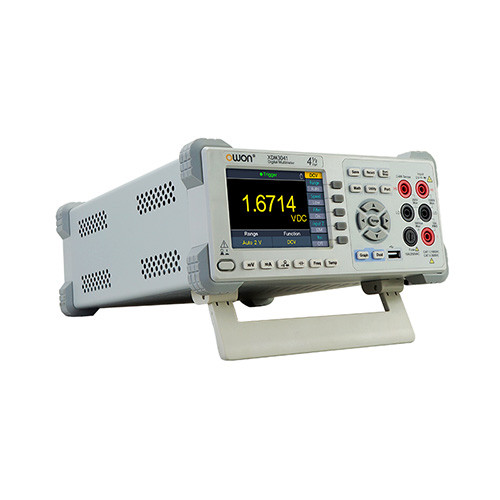

OWON XDM3041 Bench-Type Digital Multimeter (4 1/2 digital)

DC Voltage

600mV, 6V, 60V, 600V, 1000V; 0.02±0.01

True RMS AC Voltage

600mV, 6V, 60V, 600V, 750V;  20 Hz - 50 Hz, ±2% + 0.10%; 50 Hz - 20 kHz, ±0.2% + 0.06%; 20 kHz - 50 kHz, ±1.0% + 0.05%; 50 kHz - 100 kHz, ±3.0% + 0.08%

DC Current

600.00 μA; ±0.06% + 0.02%

6.0000 mA; ±0.06% + 0.02%

60.000 mA; ±0.1% + 0.05%

600.00 mA; ±0.2% + 0.02 %

6.000 A ;±0.2% + 0.05%

10.0000 A; ±0.250% + 0.05%

True RMS AC Current

60.000 mA, 600.00 mA, 6.0000 A, 10.000 A; 20 Hz - 45 Hz ±2% + 0.10%; 45 Hz - 2 kHz ±0.50% + 0.10%; 2 kHz - 10 kHz ±2.50% + 0.20%

Resistance

600.00 Ω; ±0.040 %+ 0.01%

6.0000 kΩ; ±0.030% + 0.01%

60.000 kΩ; ±0.030% + 0.015%

600.00 kΩ; ±0.040% + 0.01%

6.0000 MΩ; ±0.120% + 0.03 %

60.000 MΩ; ±0.90% + 0.03%

100.00 MΩ; ±1.75 % + 0.03%

Diode Test: 3.0000 V; 0.5 + 0.01

Continuity: 1000 Ω; 0.5 + 0.01

Frequency Period:

600 mV - 750 V; 20 Hz - 2 kHz ±0.01% + 0.003%; 2 kHz - 20 kHz ±0.01% + 0.003%; 20 kHz - 200 kHz ±0.01% + 0.003%; 200 kHz - 1 MHz ±0.01% + 0.006%

60 mA - 10 A; 20 Hz - 2 kHz ±0.01% + 0.003%; 2 kHz - 10 kHz ±0.01% + 0.003%

Capacitance:

2.000 nF; 200 nA; ±3% + 1.0%

20.00 nF; 200 nA; ±1% + 0.5%

200.0 nF; 2 μA; ±1 %+ 0.5%

2.000 μF; 10 μA; ±1% + 0.5%

200 μF; 100 μA; ±1% + 0.5%

10000 μF; 1 mA; ±2% + 0.5%

Temperature: temperature sensors under 2 categories supported

thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)

Logging Duration: 5ms

Logging Length: 1M points

Accessories: Power Cord, Manual, USB, Fuse, Multimeter Lead, Alligator Clip
