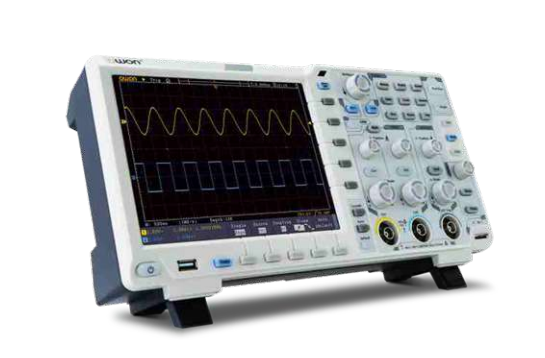

Owon XDS3102AP Digital Storage Oscilloscopes (100MHz, 2+1 channels (external)

  • Manufacturer: OWON
    Model: XDS3102AP
    Origin: China
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: OWON

Model: XDS3102AP

Origin: China

Warranty: 12 months


Bandwidth 100MHz

Sample Rate 1GS/s

Record length 40M

Waveform Refresh Rate 75,000 wfms/s

Horizontal Scale (s/div) 1ns/div - 1000s/div

Channel 2 + 1 (external)

Display 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)

Max Input Voltage 1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms DC Gain Accuracy ±3%

Input Coupling DC, AC, and GND Vertical Sensitivity 1mV/div - 10V/div (at input)

Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,  and CAN (optional)

Bus Decoding I2C, SPI, RS232, and CAN (optional)

Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin,

Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,

+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓,

+Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Countn

Waveform Math +, -, ×, ÷, FFT Waveform Storage 100 waveforms

Accessories: Power Cord, CD Rom, Quick Guide, USB Cable Probe

Optional Accessories

Multimeter Lead

Q9

Capacitance Ext Module

Battery 3.7V, 13200 mAh

Soft Bag
