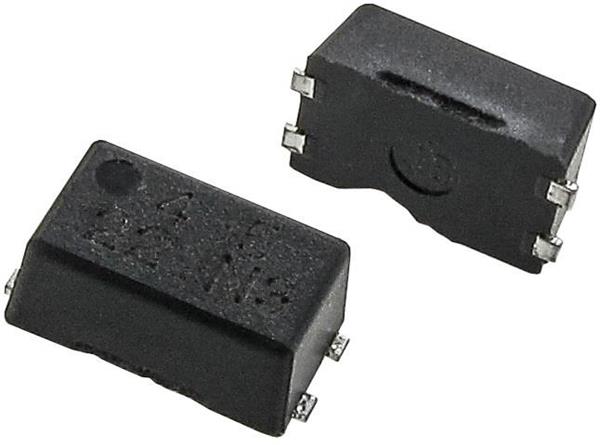

Panasonic Industrial Devices AQY221R6VY Controller PhotoMOS RF SSOP
Manufacturer: Panasonic Industrial Devices Model: AQY221R6VY - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 2.65 mm
Height: 1.8 mm
Length: 4.45 mm
Output Type: Photo MOSFET
Contact Form: SPST (1 Form A)
Input Current: 50 mA
Mounting Style: PCB Mount
Isolation Voltage: 1.5 kV
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 1 A
Load Voltage Rating: 30 VAC, 30 VDC
Control Voltage Range: 1.14 VDC
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Input to Output Isolation Method: Optocoupler
