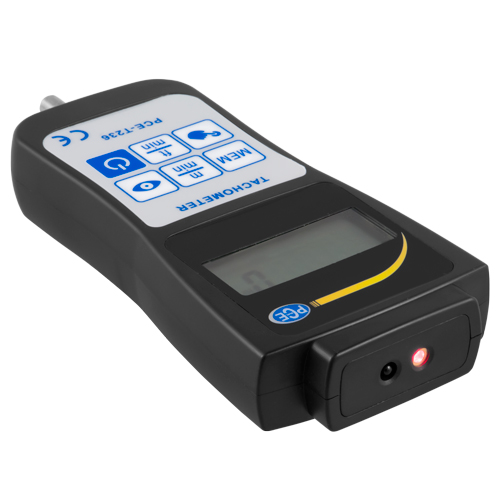

PCE T236 Handheld Tachometer (Contact and non contact)


Measurement range for velocity


5 to 99999 rpm (optical)
0.5 to 19999 rpm (contact)
0.05 to 1999 m/mim (contact)
0.2 to 6560 ft/min (contact)

Resolution0.5 to 999.9 = 0.1 rpm;
up to 99999 = 1.0 rpm (optical)
0.5 to 999.9 = 0.1 rpm;
up to 19.999 = 1.0 rpm (contact)
0.05 to 99.99 = 0.01 m/min;
up to 1999 = 0.1m/min (contact)
0.2 to 999.9 = 0.1 ft/min;
up to 6560 = 1 ft/min (contact)
Accuracy

±0.05% of reading; ±1 digit

Maximum distance for optical measurements300mm
Memorylast value, maximum and minimum value
Power4 AA batteries
Operating temperature0 to 50°C
EnclosureABS plastic
Display5 digit LCD, turns automatically depending on the type of measurement
Dimensions65 x 215 x 38mm
Weight300g

Delivery Contents:

1 x PCE-T236 handheld tachometer

1 x Conical mechanical attachment

1 x Cylindrical mechanical attachment

1 x Measuring wheel mechanical attachment

1 x Roll of laser-reflective tape

1 x Carrying case

1 x User manual
