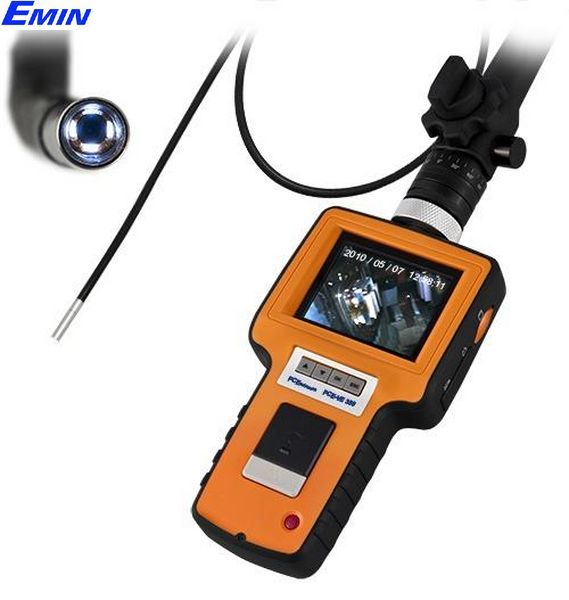

PCE-VE 350 Video borescope
Manufacturer: PCE Model: VE 350 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
|
Technical specifications |
|
|
Flexible cable length |
800 mm (with joystick: 900 mm) |
|
Image sensor |
CMOS |
|
Resoution / Image sensor (dynamic / static) |
320 x 240 / 640 x 480 |
|
Image frequency |
30 / s |
|
Exposure |
automatic |
|
White scale |
fixed |
|
Field of view / angle of view |
67 ° |
|
Distance of view |
1,5 ... 10 cm |
|
Ilumination |
4LEDs |
|
Cable diameter |
6,0 mm |
|
Head |
360º addressable head |
|
Curvature radius |
90 mm |
|
Display |
TFT 3,5" |
|
Interface |
Mini-USB 1.1 (AV out / AV in) |
|
Image memory |
512 MB memory card SD (it can be increased to 2 GB) |
|
Compression format |
MPEG4 |
|
Image format |
JPEG (640 x 480) |
|
Video output format |
NTSC & PAL |
|
Operating / Storage temperature |
-10 ... +50 °C |
|
Power |
rechargeable Lithium-Ion battery |
|
Weight with carrying case |
450 g |
Manufacturer: PCE-UK
Warranty: 12 months
Discontinued
