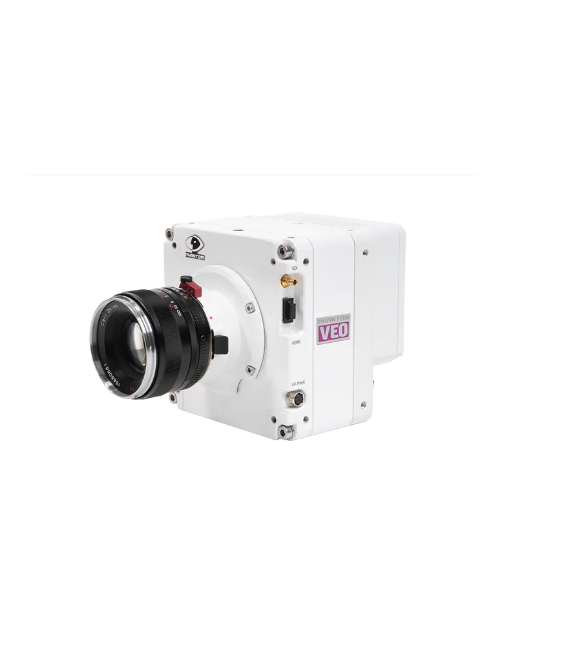

PHANTOM VEO 1010L High-Speed Cameras (1.2 Megapixels, 1280 x 960, 8,420fps)

IMAGE & SENSITIVITY:

Sensor Type: CMOS with Correlated Double Sampling and Global Shutter

Maximum Resolution: 1280 X 960/ Binned 640 x 480

CAR Increments: 640 x 12/ Binned 320 x 24

Pixel Size: 18 μm/ Binned 36 μm

Sensor Size: 23 x 17.2 mm

Bit Depth: 12 bit

EMVA 1288 Measurements (at 532 nm)

Standard Mode/ Binned Mode

Quantum Efficiency: % 71.6% mono, 53.3% color/ 63.80%

Max. SNR (dB): 40.7/ 43.7

Absolute Sensitivity Threshold (p): 19.8 mono, 24.2 color/ 46.7

Saturation Capacity (e-): 11,700 mono, 21,024 color/ 23,183

Temporal Dark Noise (e-): 13.65/ 29.27

Dynamic Range (dB): 58.3/ 57.8

CONNECTIVITY & SIGNALS

Ethernet: Gigabit Standard, 10Gb Optional

Timecode: IRIG-B Modulated and Un-modulated

Port Descriptions:

Ethernet: RJ45

Power: Fischer 6-pin

Range Data: N/A

USB: N/A

Video output: 3G-SDI (1 port),HDMI

Dedicated BNC: Trigger, Timecode-in

Programmable I/O BNC: 2 ports

I/O Signals: Programmable I/O for Fsync, Strobe, Ready, Timecode-out, Event, Memgate, Pretrigger. Assign and define signals in PCC

Hardware Trigger: Dedicated BNC

Software Trigger: via Ethernet; via Imagebased auto trigger (IBAT)

Synchronization: External Sync via FSync or IRIG Timecode

Video Output: Din and Micro

HDMI type D port (front). Cameras prior to 2021 had HDMI type A port.

Accessory: Power 4-pin Hirose (front) for 12V monitors up to 1 Amp

MEMORY & STORAGE

RAM Buffer: 18GB, 36GB, 72GB RAM options

Multi-Cine: Up-to 63 Partitions
