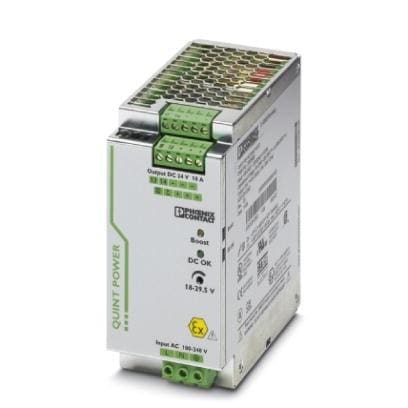

PHOENIX CONTACT 2320911 Switching Supplies QUINT-PS/ 1AC/24DC/ 10/CO DIP COATED SFB
Manufacturer: PHOENIX CONTACT Model: 2320911 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 60 mm (2.362 in)
Height: 130 mm (5.118 in)
Length: 124.46 mm (4.9 in)
Industry: Industrial
IP Rating: IP20
Input Type: 3-Phase / Three Phase
Unit Weight: 1.559 kg
Output Power: 9.1 W
REACH - SVHC: Details
Input Voltage: 85 VAC to 264 VAC, 90 VDC to 410 VDC
Mounting Style: DIN Rail Mount
Isolation Voltage: 3 kV
Number of Outputs: 1 Output
Open Frame/Enclosed: Enclosed
Output Current-Channel 1: 10 A
Output Voltage-Channel 1: 24 VDC
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
