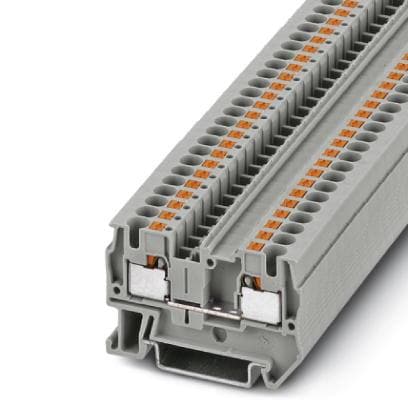

PHOENIX CONTACT 3211778 Feed Through PT 4 WH
Manufacturer: PHOENIX CONTACT Model: 3211778 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Color: White
Width: 6.2 mm
Height: 35.3 mm
Length: 56 mm
Unit Weight: 8.800 g
Current Rating: 32 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 800 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 24 AWG
Wire Gauge Range: 24 AWG to 10 AWG
Connection Method: Push-In
Flammability Rating: UL 94 V-0
Number of Positions: 1 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
