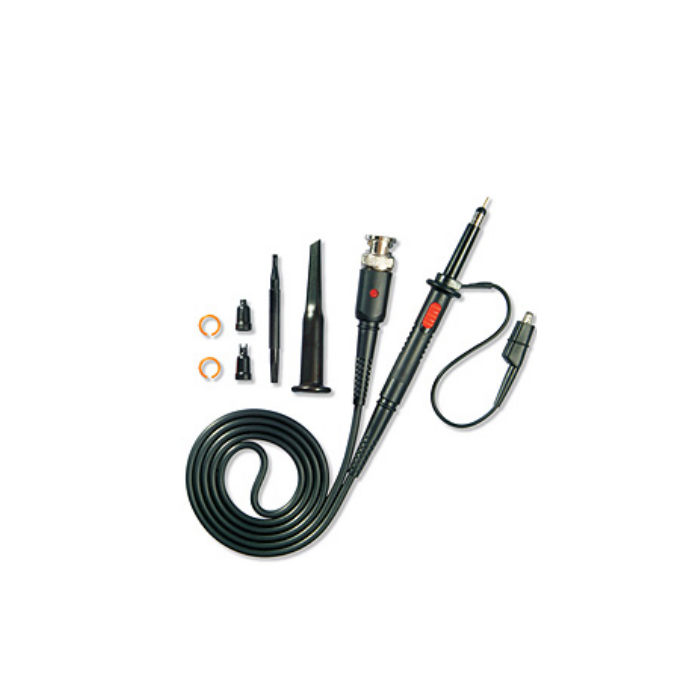

PINTEK CP-2100 Oscilloscope Probe
Manufacturer: PINTEK Model: CP-2100 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Working Voltage: 400V DC 600V peak 200Vrms
Bandwidth: 100MHZ
Division Ratio: X1, X10
Rise time: X 1: 58ns ,X 10 3.5ns
Input Capacitance: X 1: 55PF, X 10: 16 PF
Input Resistance: X 1: 1MΩ, X10: 10MΩ
Compensation Range: 10 ~ 35 PF
Cable Length: 1.2M
Temperature Coefficient: <200 PPM/
DC Accuracy: <1%
Operating Temperature: 0~50 ℃
Storage Temperature: -20~70 ℃
Weight: 87g
