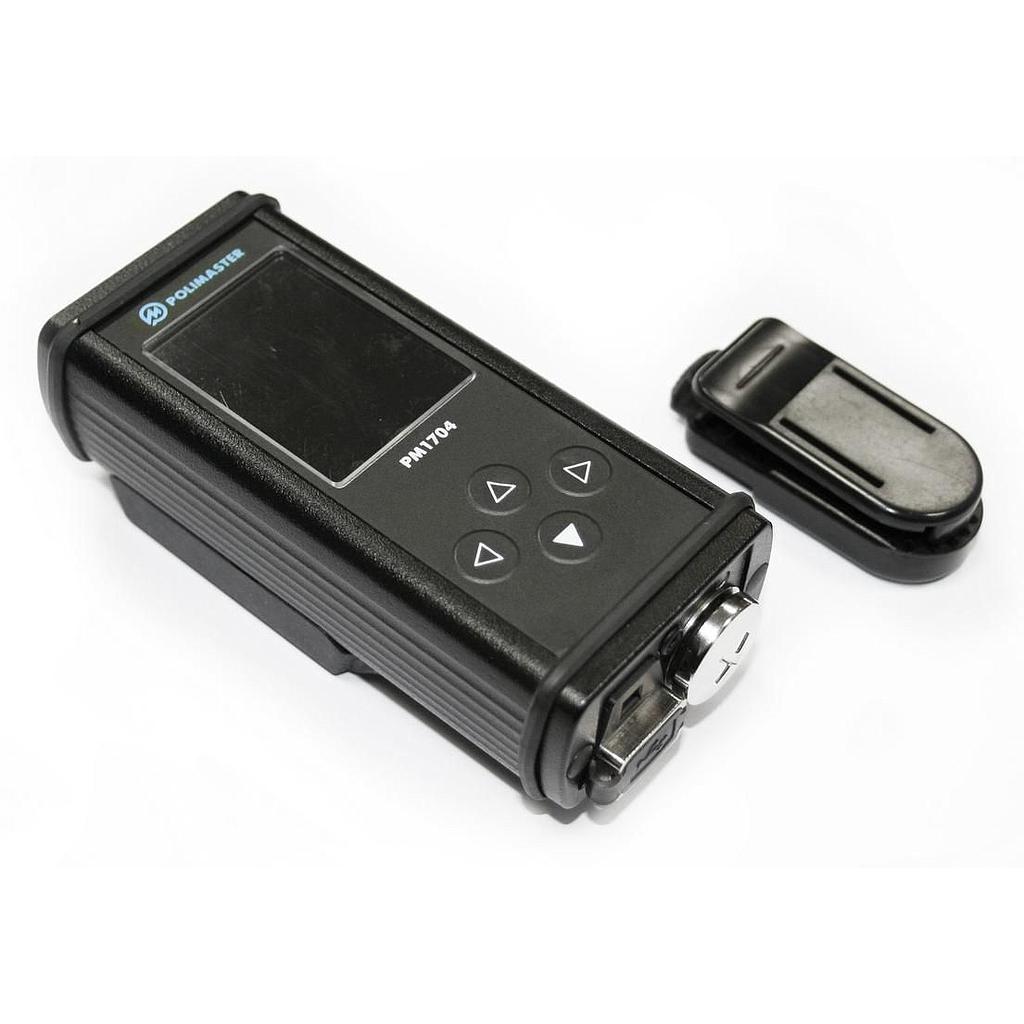

Polimaster PM1704M Spectroscopic Personal Radiation Detectors
Manufacturer: POLIMASTER Model: PM1704M Origin: EU - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
- Detector:
+ gamma: CsI(Tl) and G-M tube
+ Neutron:X - Sensitivity:
+ for 137Сs, no less 100 cps/(µSv/h)
+ for 241Am, no less 250 cps/(µSv/h)
- Energy range:
+ gamma 0.033 - 3.0 MeV
+ Neutron:X
- Dose Rate :
+ gamma 0.01 µSv/h – 13 Sv/h (1 µR/h – 1300 R/h)
+ Neutron: X
- Dose: X
- Accuracy: ± 30%
- Response time: 0.25 s
- Radionuclide identification:
+ Special nuclear materials (SNM): 233U, 235U, 237Np, 239Pu (function available only upon customer request)
+ Medical radionuclides: 18F, 67Ga, 51Сr, 75Se, 89Sr, 99Mo, 99mTc, 103Pd, 111In, 123I, 131I, 153Sm, 201Ti, 133Xe
+ Naturally occurring radioactive materials (NORM): 40K, 226Ra, 232Th and daughters, 238U and daughters + Industrial radionuclides: 57Co, 60Co, 133Ba, 137Cs, 192Ir, 226Ra, 241Am
- Standards compliance: ITRAP (IAEA) requirements, ANSI N42.32 (most relevant parts), ANSI N42.33 (most relevant parts), ANSI N42.42, IEC 60846 (most relevant parts), IEC 62401 (most relevant parts)
- Alarm type: Visual, audible, vibration
- Data recording: Up to 100 spectra
- Environmental protection: IP65
- Drop test on concrete floor: 1.5 m
- Power supply: one AA standard or rechargeable battery
- Battery life time: Up to 300 hours
- Operating temperature: -20oС to 50oС (-4oF to 122oF)
- Size (without holster): 130х60х46 mm (5 1/9 x2 1/3 x1 8/9 )
- Weight:
+ (without holster): 280 g (9.9 oz)
+ (with holster):X
- Low battery warning: LCD
- Overload indication:
+ Gamma: Visual and audial
+ Neutron: X
- PC Communication: USB
Details
The family of multipurpose, highly sensitive and compact gamma and gamma-neutron spectroscopic personal radiation detectors which has advanced search algorithms that enable the measurement of radiation intensity and the quick radionuclide identification of radioactive sources. Devices are equipped with a color LCD display and a user-friendly interface, and are highly ergonomic and convenient to use even in harsh environments.
The new class of small (pocket-size) pager-style gamma and gamma-neutron spectroscopic personal radiation detectors combines the functionality of radiation detectors (detection and localization of radiation sources and primary radionuclide identification) and dosimeters (measurement of dose rate and count rate).
The distinctive feature of this class of devices is the autonomous primary radionuclide identification of radioactive sources that does not require a connection to a remote unit (smartphone/PC/laptop/PDA, etc.), even in the presence of shields, containers or other forms of physical protection of radiation sources that have a weakening and scattering influence. Identification results appear on a bright, easily read color LCD display. The results show not only designations of identified radionuclides, but also classes to which they relate in accordance with the recommendations of the International Atomic Energy Agency (IAEA) - naturally occurring radiation materials (NORM), medical isotopes, industrial sources or special nuclear materials (SNM).
Main features:
Fast and reliable identification of isotopes, with results displayed on the device itself
Built-in highly sensitive CsI(Tl) spectroscopic detector (all modifications)
Built-in Li6I(Eu) neutron detector (РМ1704GN)
G-M tube that expands the range of dose rate measurement (РМ1704М)
Simplicity and ease of use
Bright, color LCD that allows easy reading even in bright sunlight
Built-in dictaphone
USB interface
Audible, vibration and visual alarms
Lightweight and compact
Storage of up to 100 gamma spectra in non-volatile memory
Shockproof hermetic case (IP65)
