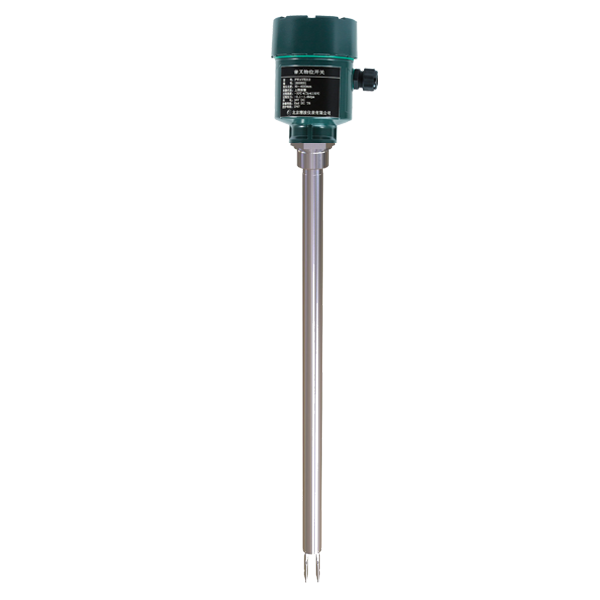

Precision Wave PWAVE213 Tuning Fork Level Switch (1000 ~ 6000 mm)
Manufacturer: Precision Wave Model: PWAVE213 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Application: liquid point measurement
Measurement range: (1000 ~ 6000) mm
Process connection: Threaded, Flanged
Process temperature: Standard type (-50 ~150) ℃
Process pressure: (-0.1 ~ 2.0) MPa
Frequency range: about 1200Hz
Output signal: two sets of normally open and normally closed contacts
Contact capacity: 24V DC/8A; AC 220 v/5 a
Explosion-proof grade: Exd IIC T6 Gb
Protection class: plastic IP66/aluminum IP67
