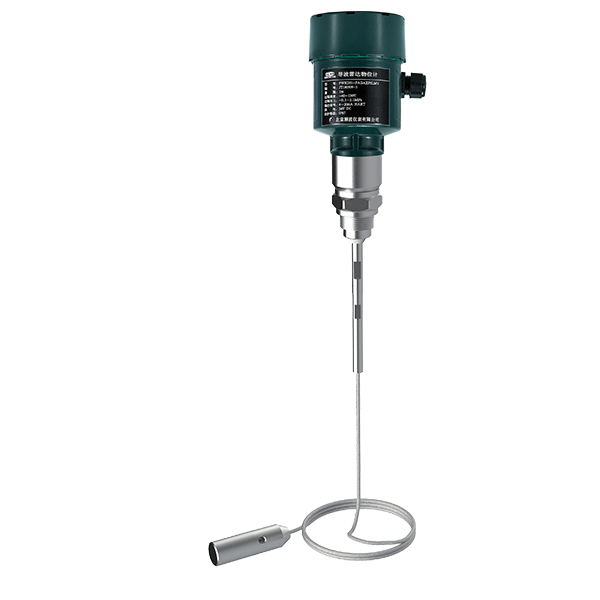

Precision Wave PWRD31 Guided Wave Radar Level Transmitter (100MHz~1.8GHz; 30m)
Manufacturer: Precision Wave Model: PWRD31 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Application: level measurement of liquid storage tanks and solid powder silos
Maximum range: 30m
Process connection: thread, flange
Process temperature: -40~300℃
Process pressure: -0.1~4.0Mpa
Accuracy: ±3mm
Frequency range: 100MHz~1.8GHz
Signal output:
4~20mA/HART 24V DC 2-wire /4-wire system
4~20mA/HART 220V AC 4-wire system
RS485/Modbus
Explosion-proof grade: Exia IIC T6 Ga；Exd IIC T6 Gb
Protection class: IP68
