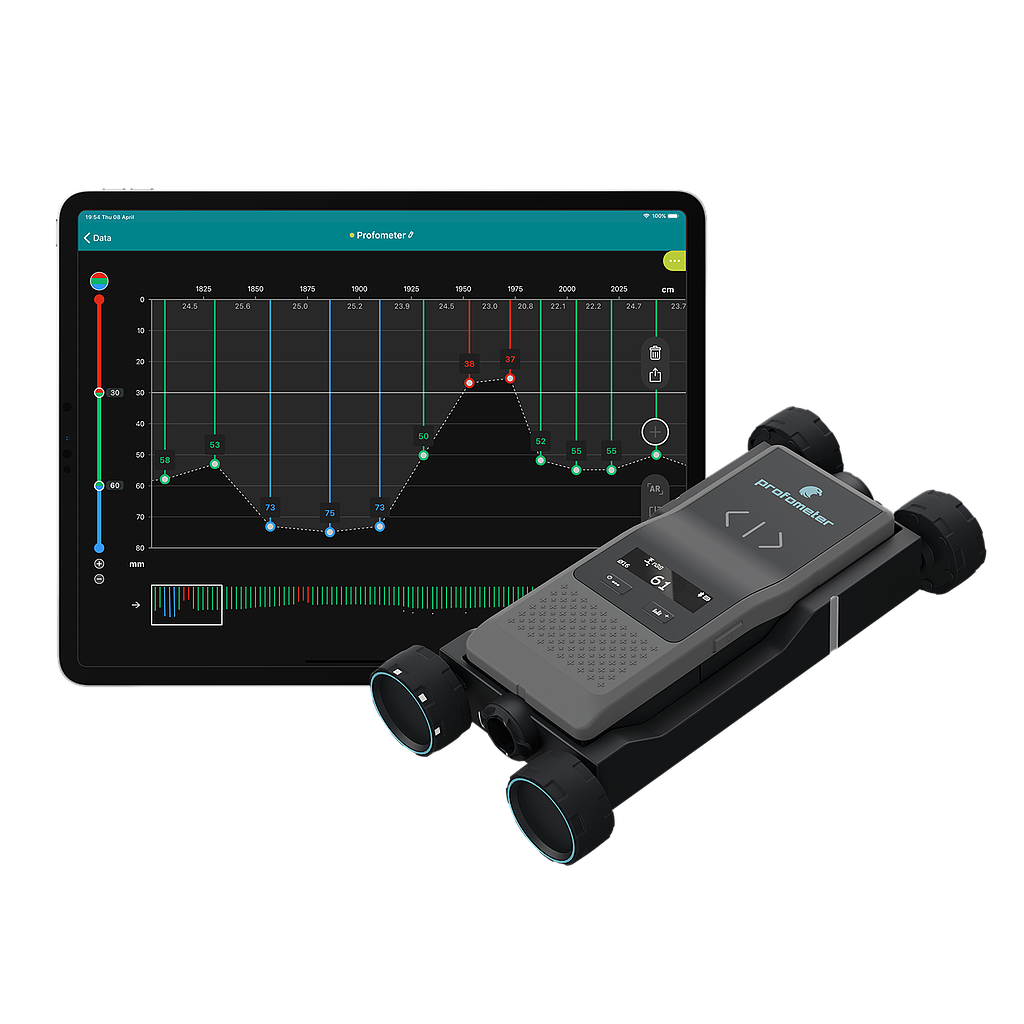

PROCEQ PM8000 Profometer Rebar Diameter & Cover Meter

Profometer App Tech Specs

Measurement Modes : Spot

Review Modes :Statistics

Advanced visualization :DBV (Deutscher Beton- und Bautechnik-Verein)

 Image Processing : Neighbouring rebar correction first layer

Display settings :Concrete cover threshold slider with colour palette

On-site annotations :photos /geolocation /voice notes

Reporting :Workspace integration /Share via URL/ Automatic Logbook /Automatic Logbook /Raw data export /Instant report generation

Export formats: JPG (Screenshot) /PNG /CSV /HTMLy

Display Unit Specs**: Latest Apple® iPad recommended (iPad with iOS 11.0 and higher) Screen size: From 7.9" to 12.9" Resolution: Up to 2732-by-2048 Memory: Up to 2TB Weight: Down to 301 g / 10.6 oz Camera: Up to 12MP Wide and 10MP Ultra Wide Optional: USB-C, 5G, Face ID

Display Unit Sensors**: LiDAR Scanner (optional) Three-axis gyro Accelerometer Ambient light sensor Barometer Built-in GPS/GNSS

Instrument Tech Specs

Technology :Eddy-current

Connection: Wireless

Cover Measuring depth: Up to 185 mm / 7.3 in

Cover Measuring Accuracy: +/-1 mm / 0.04 in to 4 mm /0.16 in depending on depth

Rebar Diameter Measuring Depth: up to 63 mm / 2.5 in

Rebar Diameter Measuring Accuracy: +/- rebar size

Encoder Accuracy: +/- 0.5mm / 0.02 in + 0.5% of measured length

Max Scanning Speed: 0.5m/s - 1.7 ft / s

Max Line Scan Distance: 1km / 0.6 miles

Max Area Scan: 10'000m2 / 107'000 ft2

Display: High-contrast OLED screen

Dimensions 250 x 130 x 45 mm / 9.8 x 5.1 x 1.8 in (with cart) 190 x 75 x 45 mm / 7.5 x 3.0 x 1.8 in (without cart)

Weight: 690 g / 1.5 lb (with cart) 300 g / 0.7 lb (without cart)

Battery: 2 x AA (NiMH) rechargeable or non rechargeable Removable Flight-safe 8 hours autonomy USB-C power bank (not in
