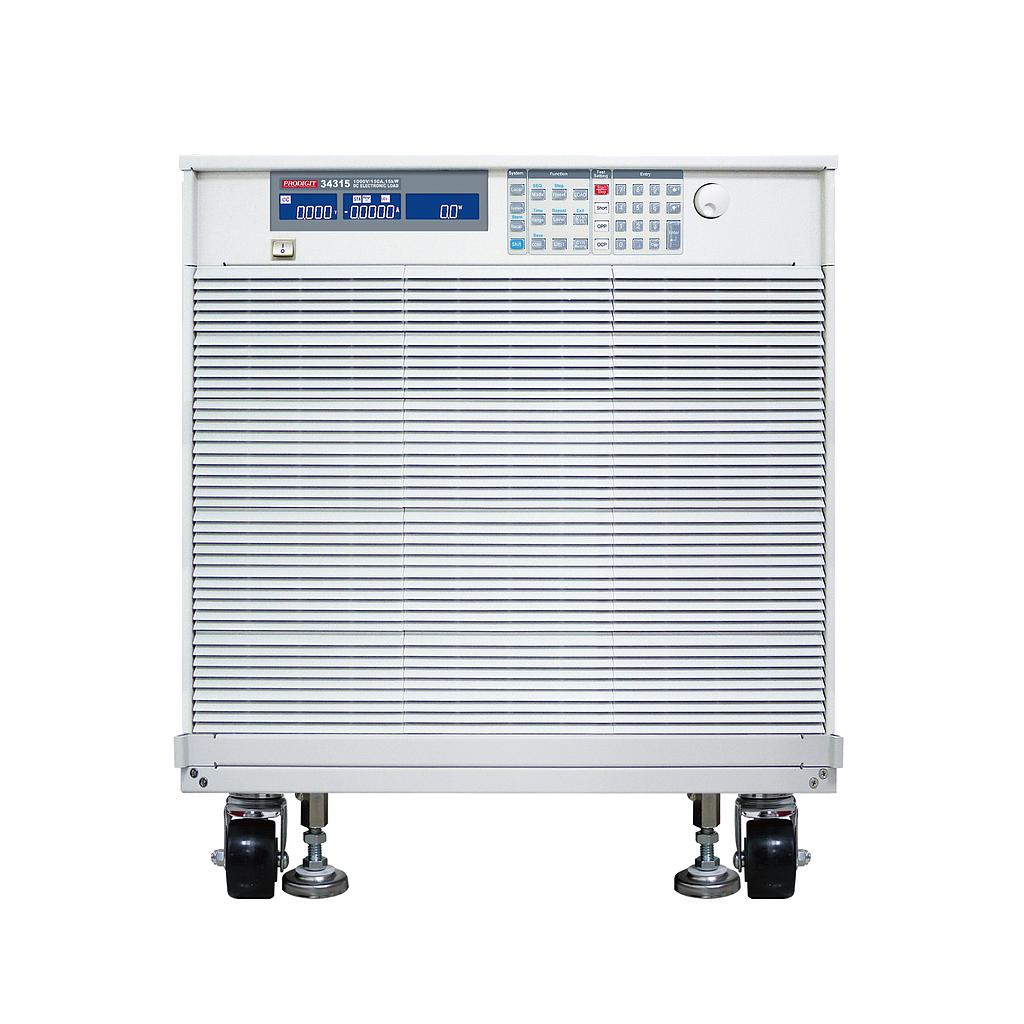

Prodigit 34315A Compact High Power DC Electronic Load (15KW,150A,1000V)

Power: 15KW
Current: 0~15A/0~150A
Voltage: 0~1000V
Min.Operation Voltage: 20V@150A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 15A/150A
  Resolution: 0.25mA/2.5mA
  Accuracy:    ±0.1%
CR mode:
  Range: 6.666~8000Ω/0.1344~6.666Ω
  Resolution: 2.5uS/0.112mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 20~1000V
  Resolution: 16mV
  Accuracy:    ±0.05%
CP mode:
  Range: 1500W/15000W
  Resolution: 25mW/250mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 15A/15~150A, ±0.1%
  Power : 1500W/15000W, ±0.125%
Short circuit current: 150A
Dimension (HxWxD): 728 x 647 x 766 mm
Weight: 170 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
