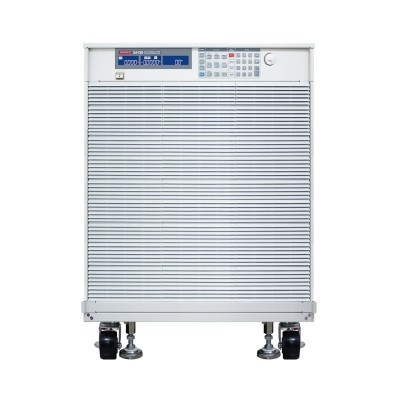

Prodigit 34120A Compact High Power DC Electronic Load(20KW,1000A,60V)

  • Manufacturer: PRODIGIT
    Model: 4120A
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

    Hotline: (+84) 867820758

    Phone+84 (24)62923267

Power: 20KW
Current: 0~100A/0~1000A
Voltage: 0~60V
Min.Operation Voltage: 0.1V@100A/0.7V@1000A
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 0~100A/0~1000A
  Resolution: 1.667mA/16.67mA
  Accuracy:    ±0.1%
CR mode:
  Range: 0.06~3600Ω/0.001~0.06Ω
  Resolution: 277uS/0.001mΩ
  Accuracy:    ±0.2%
CV modes:
  Range: 60V
  Resolution: 1mV
  Accuracy:    ±0.05%
CP mode:
  Range: 2000W/20000W
  Resolution: 33.4mW/334mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 6V/6~60V, ±0.025%
  Current : 0 ~ 100A/100~1000A, ±0.1%
  Power : 2000W/20000W, ±0.125%
Short circuit current: 1000A
Dimension (HxWxD): 885 x 647 x 766 mm
Weight: 220 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
