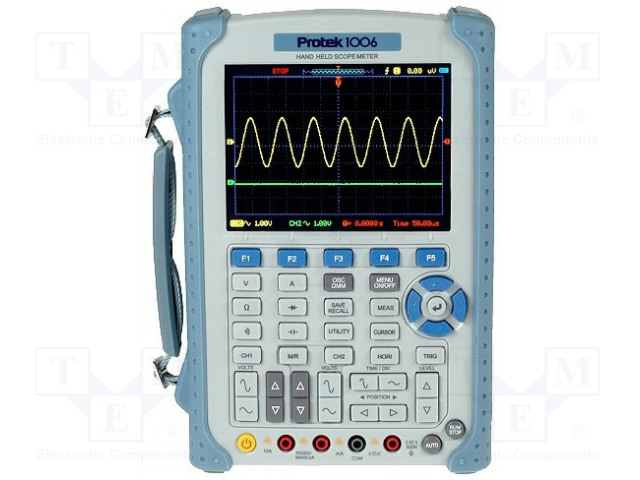

Protek 1006 Handheld Oscilloscope (60Mhz, 2channels)
Manufacturer: PROTEK Model: 1006 - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Specifications | ||
Vertical | Channels | 2 |
Bandwidth | 60 MHz | |
Rise Time | 5.8ns | |
Input Impedance | Resistance: 1M, Capacitance: 15pF | |
Input Sensitivity | 10mV/div to5V/div | |
Input Coupling | AC, DC with Groud Level Indicator | |
Vertical Resolution | 8 bits | |
Memory Depth | 32k at Signal Channel, 16k at Dual Channel | |
Maximum Input | 300V (AC + DC Peak) | |
Horizontal | Sampling | Real-Time Sampling Rate:150MSa/s Equivalent-Time Sampling Rate:50GSa/s |
Time Base Range | 5ns/div~1000s/div | |
Time Base Precision | ±50ppm | |
Trigger | Source | CH1, CH2, |
Mode | Edge, Pulse Width, Alternative | |
X-Y Mode | X-Axis Input | Channel 1 |
Y-Axis Input | Channel 2 | |
Phrase Shift | Max. 3 Degrees | |
Cursors and Measurement | Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot |
Time Measurement | Frequency, Rise Time, Positive Width, Negative Width, Duty Cycle | |
Delay Measurement | Delay 1 -> 2 ,Delay 1 -> 2 | |
Cursors Measurements | Manual, Track, Auto Measure Modes | |
Waveform Signal Process | CH1+/-CH2, CH1xCH2, CH1/CH2, FFT, Invert | |
Storage | 15 Waveforms and Setups | |
Meter Mode | Maximum Resolution | 6,600 Count |
DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode and Continuity | |
Maximum Input Voltage | AC: 600V, DC: 600V | |
Maximum Input Current | AC: 10A, DC: 10A | |
Input Impedance 10 | 10MΩ | |
Display | TFT LCD Type | 5.7 Inch with LED Backlight Display |
Display Resolution | 240 (Vertical) x 320 (Horizontal)Dots | |
Interface | USB | USB Host / Device 2.0 Full Speed Supported |
Optional | RS232, LAN | |
Power Source | Line Voltage Range | AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA |
Battery Power (Installed) | 6 Hours Li-Ion Battery | |
Mechanics | Dimensions | 9.65 x 5.9 x 2.05ins (245 x 150 x 52mm) |
Weight | 2.65lbs (1.2Kgs) | |
Other | GND Reference | Oscilloscope and Multimeter Independence |
Specifications | ||
Vertical | Channels | 2 |
Bandwidth | 60 MHz | |
Rise Time | 5.8ns | |
Input Impedance | Resistance: 1M, Capacitance: 15pF | |
Input Sensitivity | 10mV/div to5V/div | |
Input Coupling | AC, DC with Groud Level Indicator | |
Vertical Resolution | 8 bits | |
Memory Depth | 32k at Signal Channel, 16k at Dual Channel | |
Maximum Input | 300V (AC + DC Peak) | |
Horizontal | Sampling | Real-Time Sampling Rate:150MSa/s Equivalent-Time Sampling Rate:50GSa/s |
Time Base Range | 5ns/div~1000s/div | |
Time Base Precision | ±50ppm | |
Trigger | Source | CH1, CH2, |
Mode | Edge, Pulse Width, Alternative | |
X-Y Mode | X-Axis Input | Channel 1 |
Y-Axis Input | Channel 2 | |
Phrase Shift | Max. 3 Degrees | |
Cursors and Measurement | Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot |
Time Measurement | Frequency, Rise Time, Positive Width, Negative Width, Duty Cycle | |
Delay Measurement | Delay 1 -> 2 ,Delay 1 -> 2 | |
Cursors Measurements | Manual, Track, Auto Measure Modes | |
Waveform Signal Process | CH1+/-CH2, CH1xCH2, CH1/CH2, FFT, Invert | |
Storage | 15 Waveforms and Setups | |
Meter Mode | Maximum Resolution | 6,600 Count |
DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode and Continuity | |
Maximum Input Voltage | AC: 600V, DC: 600V | |
Maximum Input Current | AC: 10A, DC: 10A | |
Input Impedance 10 | 10MΩ | |
Display | TFT LCD Type | 5.7 Inch with LED Backlight Display |
Display Resolution | 240 (Vertical) x 320 (Horizontal)Dots | |
Interface | USB | USB Host / Device 2.0 Full Speed Supported |
Optional | RS232, LAN | |
Power Source | Line Voltage Range | AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA |
Battery Power (Installed) | 6 Hours Li-Ion Battery | |
Mechanics | Dimensions | 9.65 x 5.9 x 2.05ins (245 x 150 x 52mm) |
Weight | 2.65lbs (1.2Kgs) | |
Other | GND Reference | Oscilloscope and Multimeter Independence |
