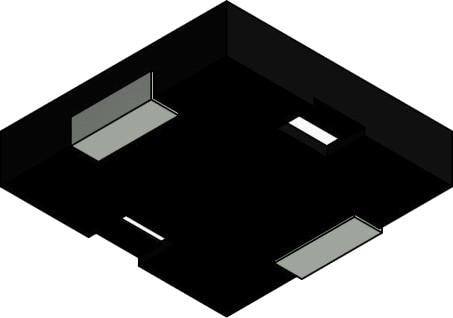

PUI Audio SMT-0952-T-5V-R Piezoelectric TRANSDUCER 5 VP-P
Manufacturer: PUI Audio Model: SMT-0952-T-5V-R - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Shape: Square
Width: 9 mm
Height: 1.9 mm
Length: 9 mm
Frequency: 5.2 kHz
Dimensions: 9 mm L x 9 mm W x 1.9 mm H
Width - in: 0.354 in
Width - mm: 9 mm
Height - in: 0.075 in
Height - mm: 1.9 mm
Length - in: 0.354 in
Length - mm: 9 mm
Unit Weight: 200 mg
REACH - SVHC: Details
Current Rating: 3 mA
Mounting Style: Board Mount
Voltage Rating: 5 V
Termination Style: Gullwing Lead
Sound Pressure Level: 70 dBA
Self Resonant Frequency: 5.2 kHz
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 30 C
