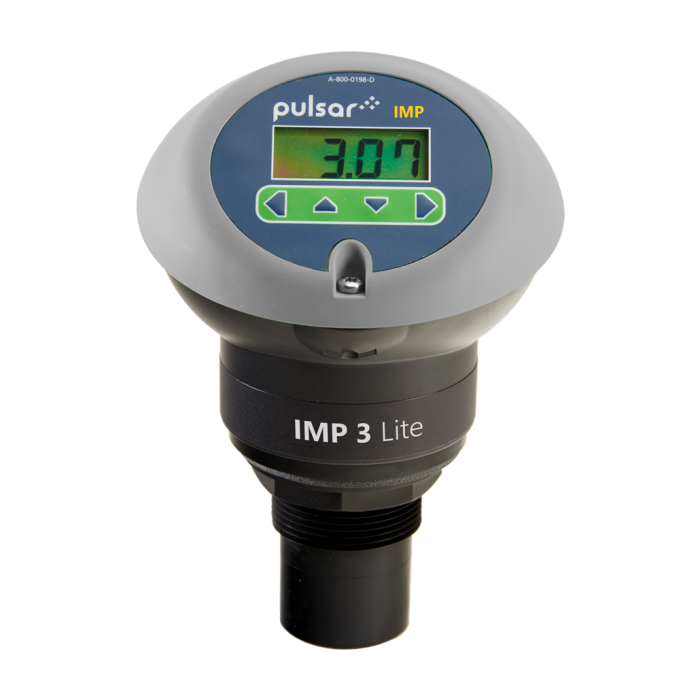

Pulsar measurement IMP LITE Non-contacting Level Sensor
Manufacturer: Pulsar measurement Model: IMP LITE - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Dimensions: 186 mm (7.3 in) H x 133 mm (5.2 in) D
Cable entry: 2 x 16 mm (0.6 in) cable glands, 3.5 mm to 10 mm (0.1 in to 0.4 in) cable diameter
Mounting: IMP3 - 3 m (9.8 ft) version: 1.5 in BSP/NPT
IMP 6 - 6 m (19.7 ft) version: 1.5 in BSP/NPT
IMP10 - 10 m (32.8 ft) version: 2 in BSP/NPT
Suits BSP & NPT, parallel and tapered
Weight: Approximately 1kg (2.2 lbs)
Temperature (Process): -40 °C to 80 °C (-40 °F to 176 °F)
Temperature (Ambient): -20 °C to 65 °C (-4 °F to 149 °F)
Input Voltage: 11-30 V, 3.5-22 mA
Accuracy: ±0.25% or 6 mm (0.2 in); whichever is greater
Resolution: ±0.1% or 2 mm (0.1 in); whichever is greater
