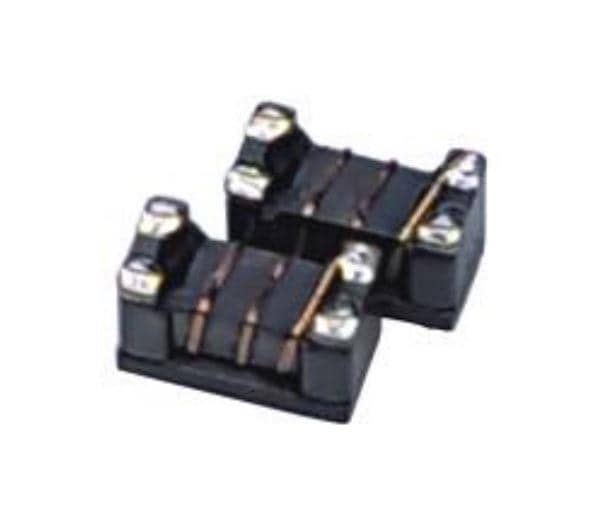

Pulse Electronics AWCU00201212900Y03 Automotive Chilisin Common Mode Choke (CMC) Automotive CAN Bus Systems
Manufacturer: Pulse Electronics Model: AWCU00201212900Y03 - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Width: 1.25 mm
Height: 1.2 mm
Length: 2.05 mm
Impedance: 90 Ohms
Shielding: Unshielded
Tolerance: 25 %
Application: Choke
Core Material: Ferrite
Mounting Style: PCB Mount
Test Frequency: 100 MHz
Termination Style: SMD/SMT
Maximum DC Current: 500 mA
Number of Channels: 1 Channel
Maximum DC Resistance: 300 mOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 50 C
