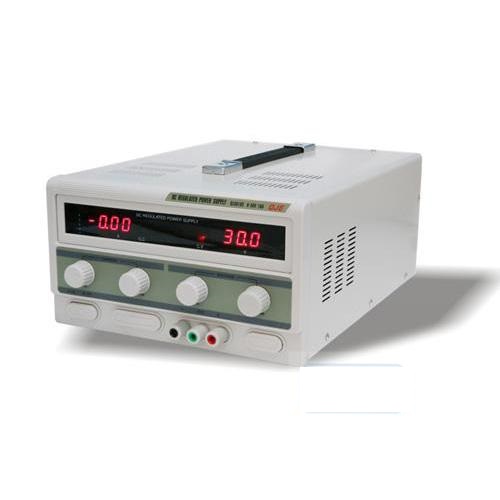

QJE QJ12003S Adjustable Dc Power Supply (0 ~ 120V/0~3A)
Manufacturer: QJE Model: QJ12003S Origin: China - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output Voltage : 0 ~120V
Output Current : 0 ~ 3A
Input Voltage : 220VAC – 50/60Hz
Source effect :
CV≤1×10-4 +3mV
CC≤2×10-3 +3mA
Load effect :
CV≤1×10-4 +3mV
CC≤2×10-3 +3mA
Ripple&Noise :
CV≤2mV rms CC≤5mArms(0-30V)
CV≤3mV rms CC≤5mArms(0-60V)
CC≤5mVrms CC≤5mArms(0-120V)
Dimensions (WxHxD) : 265x140x360mm
Weight (kg) : 12
Features :
+ Utilizing SMT technology
+ Automatic conversion of stable voltage and current
+ With the function of pre-setting for voltage and current
+ With on-off switch for DC output
+ Two LEDs display output voltage and current With S+, S- sampling connectors
