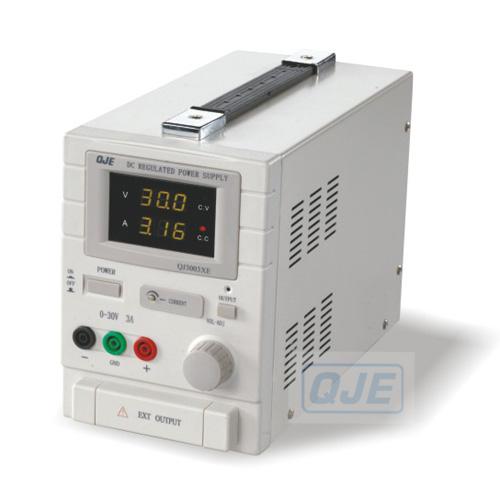

QJE QJ3003XE Adjustable DC Power Supply (30V, 3A)
Manufacturer: QJE Model: QJ3003XE Origin: China - Contact
- In stock: 1 Unit
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output Voltage : 0 ~ 30V
Output Current : 0 ~ 3A
Resolution : 100mV/10mA
Input Voltage : 220VAC – 50/60Hz
Source effect CV≤1×10-4+5mV
CC≤1×10-4 +5mA
Load effect CV≤1×10-4 +5mV
CC≤1×10-4 +5mA
Ripple&Noise CV≤1mV rms/3mVp-p
Dimensions (WxHxD) : 130x190x270mm
Weight (kg) : 5.1
Features :
+ Utilizing SMD technology
+ With the function of voltage and current pre-set
+ With on-off switch for DC output
+ Highly accurate digital dislay for voltage ouput
+ Large LED for voltage output
+ With S+, S- sampling connectors
+ Extention output connectors
