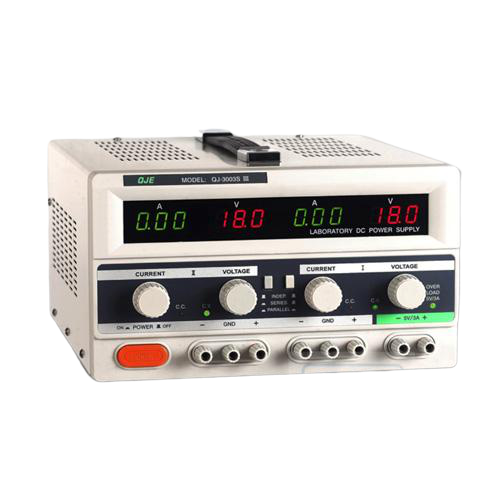

QJE QJ3005EIII DC Power Supply (0 ~30V/0~5A)
Manufacturer: QJE Model: QJ3005EIII Origin: China - Request a Quotation
- Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0345.689.536
Output : Dual
Voltage Output : 0~30V
Current Output : 0~5A
Ouput Voltage Fixed : 5V/3A
Ripple&Noise : CV<=1mVrm & CC<=5mVrm
Load effect : CV1x10^-4 + 3mV
Dimensions (WxHxD) : 260x160x360mm
Weight (kg) : 10
Feature:
+ 0 - 30V, 3A/5A tow-way adjustable and one way 5v/3a fixed output
+ 0 -30V, 3A/5A tow-way adjustable and one-way 5V/3A fixed output
+ Over current protection
+ Constant voltage, constant current, low ripple & noise, low drift
+ Pre-setting current limit
+ Two-way are automatically connected in series or in parallel mode,
machine can be connected as positive anh negative power output
+ Loopy potentiometer makes voltage set more easy
+ Double color four LCD digital panel meters for voltage anh current.
