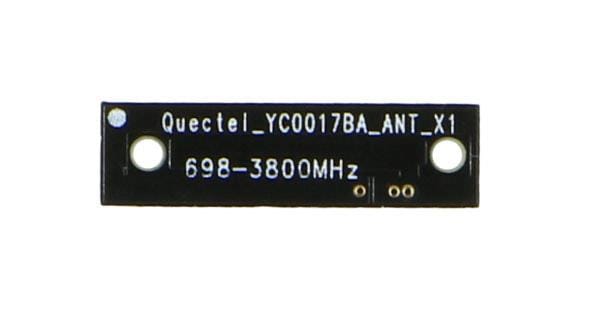

Quectel YC0017BA PCB Antennas Embedded, 698-960,1710-3800, LTE (4G), PCB, -, -, SMD, 26 x 8 x 3
Manufacturer: Quectel Model: YC0017BA - Contact
See more: Equipment Calibration-Inspection & Repair Service
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222) 730.39.68
Hai Phong city: (0225) 730.03.89
HCM city: (028) 38.119.636
Dong Nai: 0932.160.940
Gain: 4 dBi
VSWR: 4
Width: 7 mm
Height: 3 mm
Length: 25 mm
Frequency: 700 MHz to 960 MHz, 1.71 GHz to 2.7 GHz, 3.4 GHz to 3.8 GHz
Impedance: 50 Ohms
Application: LTE
Polarization: Linear
Mounting Style: PCB Mount
Frequency Range: 700 MHz to 960 MHz, 1.71 GHz to 2.7 GHz, 3.4 GHz to 3.8 GHz
Number of Bands: 3 Band
Center Frequency: 830 MHz, 2.205 GHz, 3.6 GHz
Maximum Frequency: 3.8 GHz
Minimum Frequency: 698 MHz
Termination Style: SMD/SMT
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
